BenQ AK700ST 4000-Lumen 4K Short Throw Laser Golf Simulator Projector
Delivery and Shipping
Delivery and Shipping
Product Description
Seamless Swinging and Movie Transitions
The AK700ST is BenQ’s dedicated golf simulation projector, offering cinematic-grade 4K resolution and a unique remote control for easy setup. Eliminate the hassle of adjusting screen ratios and effortlessly enjoy a complete 4K entertainment experience with family and friends.
Building Your Golf Theatre Combo?
Common Setup Issues in Your Golf Theatre
- Projector Placement Challenge – Identifying the projector throw ratio, and moving the slider rail for the optimal position takes time.
- Complex Process to Fill Up the Screen – With math calculation, go into graphic card setting, and back and forth to settle down.
- Difficulty with Focus Adjustment – Most projectors had their focus ring on the projector itself. Climbing up the ladder for manual focus is un-user-friendly.
One Projector, Two Experiences
With the BenQ AK700ST, your all-in-one projection solution, effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.
Auto Screen Fit
Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.
*Note: Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.
For non-standard aspect ratios, please view the video and adjust via graphic card settings.
Enclosure or screen black border requires at least 6 cm of width.
Quick Focus
Press the Quick Focus button on the remote control and make slight manual adjustments to effortlessly deliver clear images.
Short Throw Lens Designed for Golf Sim
Swing safely without fear of damage or shadows.
Safe Short-Throw Solution
The AK700ST enables a safe and shadow-free location for your swing.
Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.
AK700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.
Up to 200-Inch Display
AK700ST features a professional-grade motorised lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.
Bring the Course Home
AK700ST’s laser technology, paired with BenQ’s expert color calibration, delivers top-quality visuals, faithfully reproducing golf course colors.
4K Detail Visibility
With true 4K resolution and 830 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.
Perfect for Any Lighting
The AK700ST’s laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
True-to-Life Golf Course Colours
Experience authentic colours from the start with BenQ’s exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.
Tough Enough for Any Garage
AK700ST’s IP5X dustproof sealed engine operates reliably in temperatures from 32-104°F, eliminating the need for regular filter replacements.
Durable Laser Technology
The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
Ready for Wireless Projection
With an optional dongle, AK700ST’s Wi-Fi capability facilitates wireless projection from mobile devices, eliminating the need for cables.
Green Technology, Efficient Performance
AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. Plus, it’s TUV and UL-certified.
| Category | Specification |
|---|---|
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Resolution | 4K UHD (3840×2160) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Optical | |
| Throw Ratio | 0.69-0.83 |
| Zoom Ratio | 1.2x |
| Lens | F/2.53(Wide), f = 10.2mm(Wide) |
| Projection Offset (Full-Height) | 102.5% |
| Keystone Adjustment | 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees |
| Picture | |
| Rec. 709 Coverage | 95% |
| Picture Modes | 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Compatibility | |
| Input Lag | 33.4 ms (1080P 60Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |

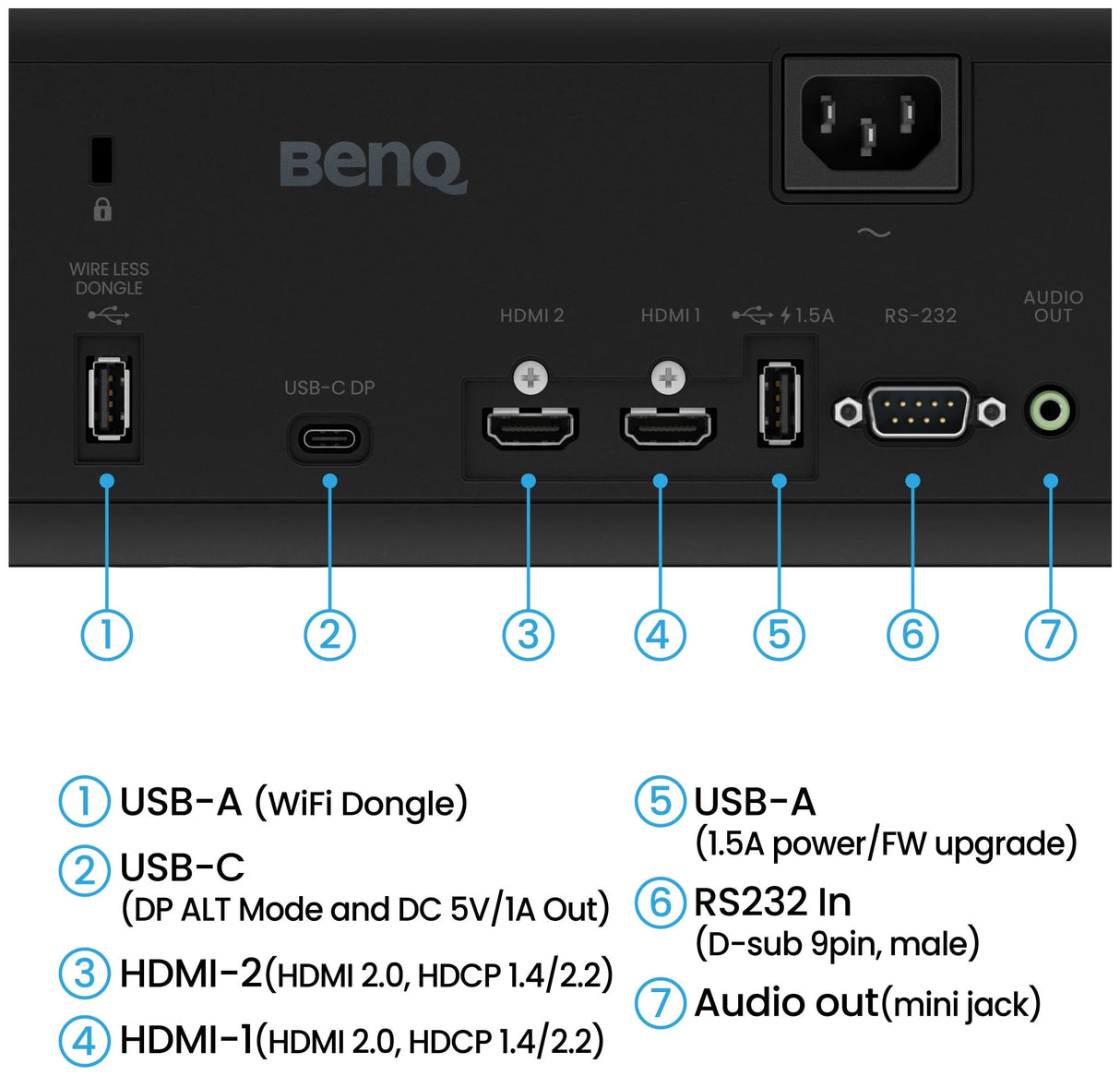

| I/O Interface | |
| HDMI in | (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2) |
| USB Type A | (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle) |
| USB Type C | (x1), Display Port with PD out 5V/1A |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| HDMI Audio Return | eARC, 7.1 channel |
| Environment | |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | 192W |
| Stand-by Power Consumption | <0.5W |
| Acoustic Noise (Typ./Eco.)(dB) | 32db/29db |
| Accessories | |
| Wireless USB dongle | 5201BS |
| Remote Control w/ Battery | RCA011 |
| Power Cord (by region) | x1 (1.8M) |
| Quick Start Guide | (x1) 21L |
| Warranty Card (by region) | Yes |
| Universal Ceiling Mount | CM00G3 |

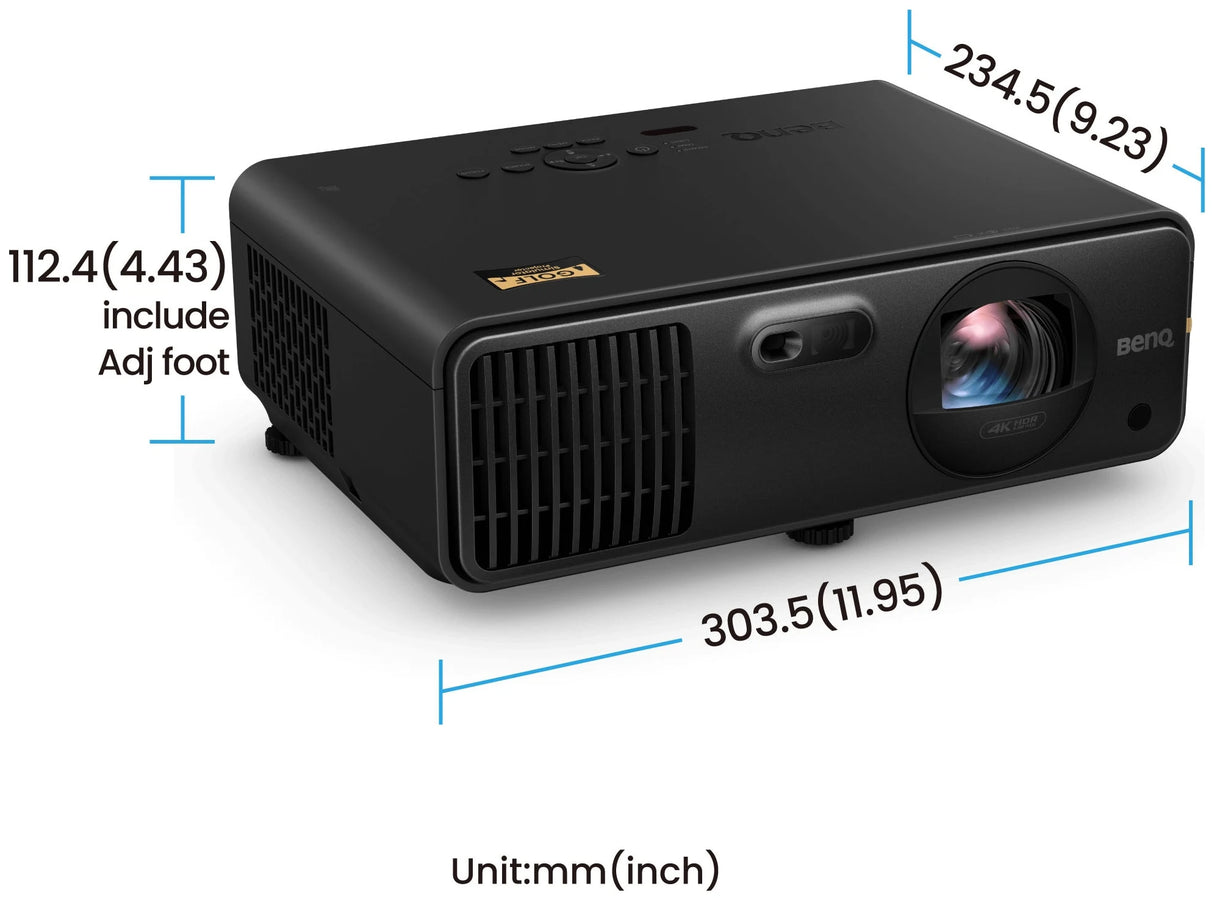

| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 303.5 x 112.4 x 234.5 |
| Net Weight (kg) | 3.4 Kg +/- 100g |
| Dimensions (WxHXD) (inch) | 11.94 x 4.43 x 9.23 |
| Net Weight (lb) | 7.48 lb |
| Projection System | |
| Projection System | DLP |
