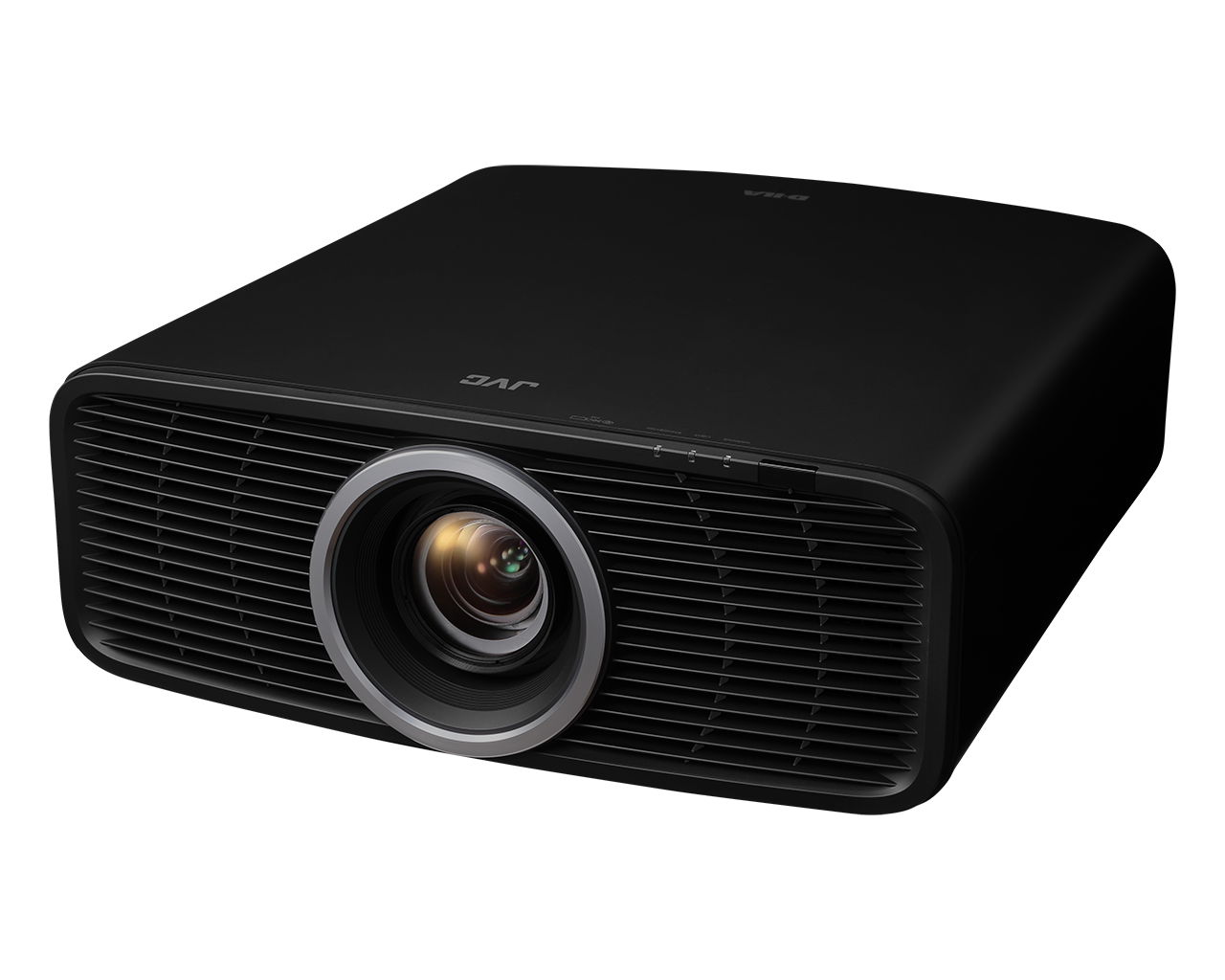

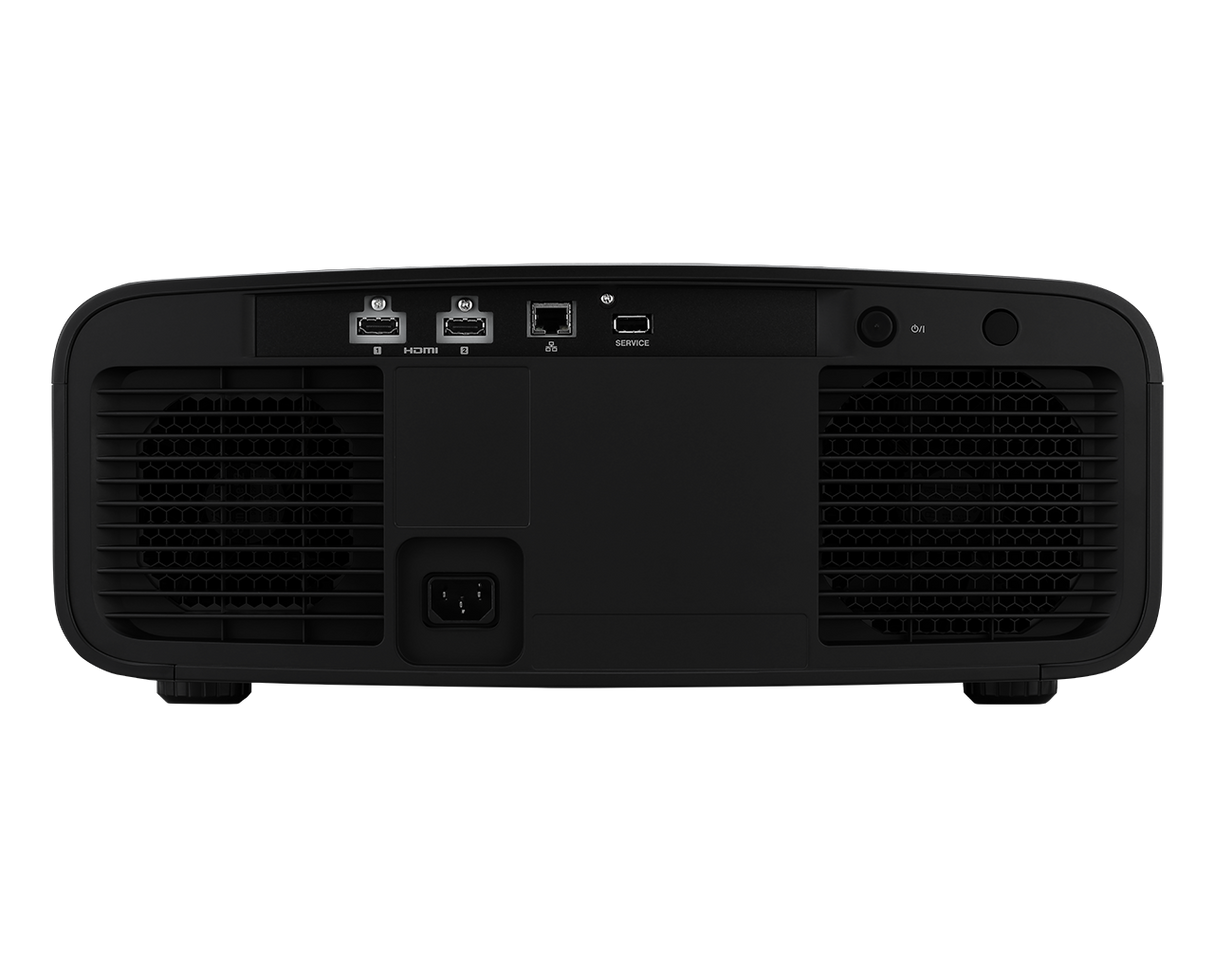

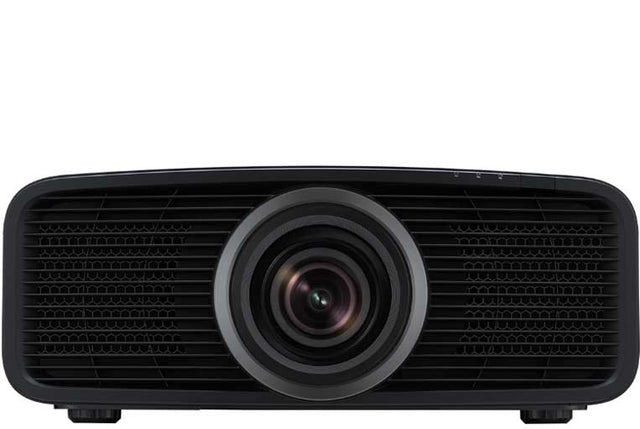

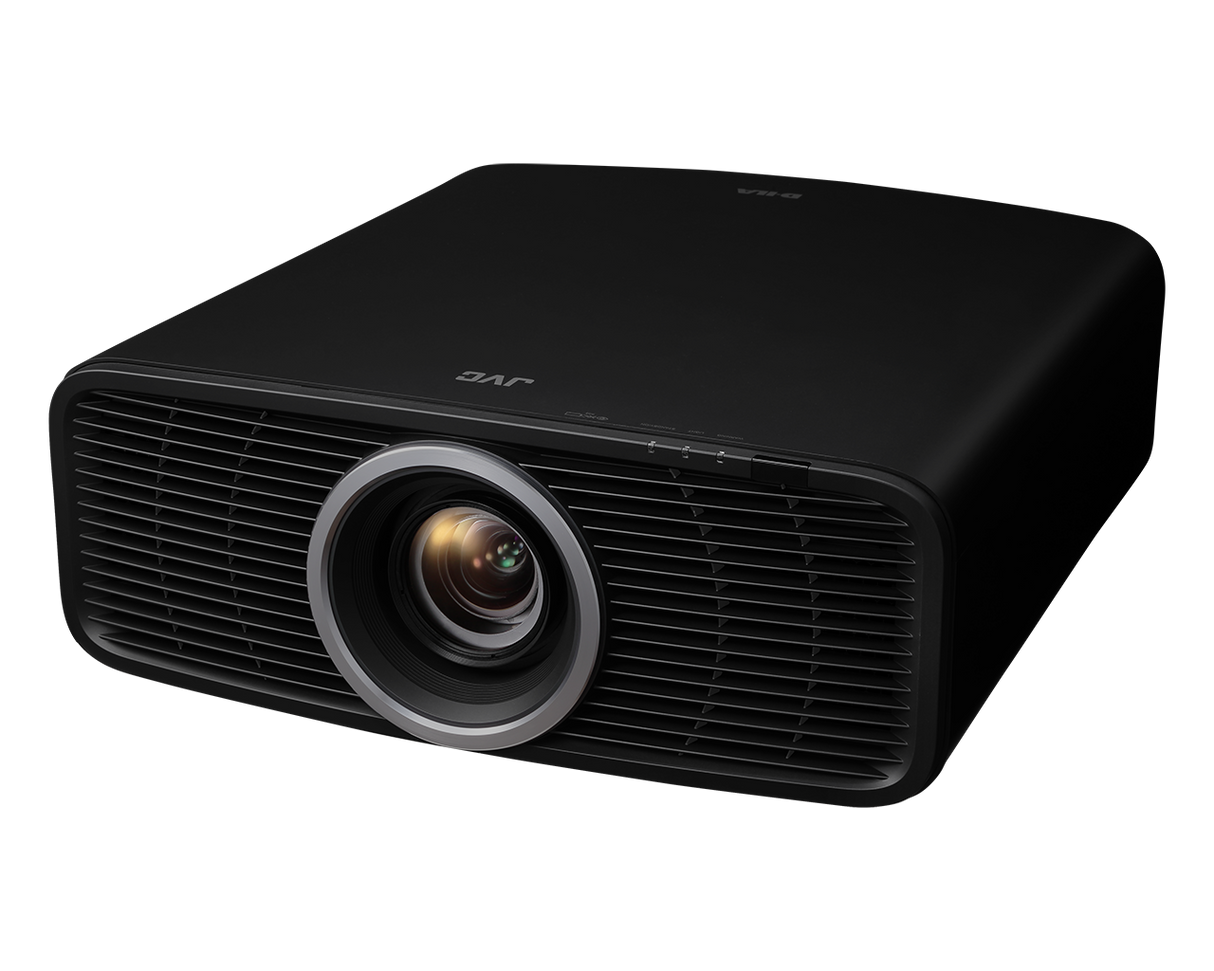

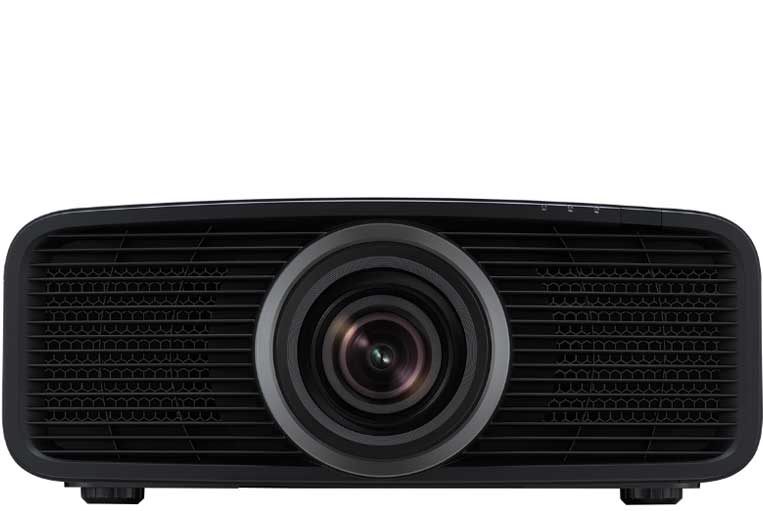

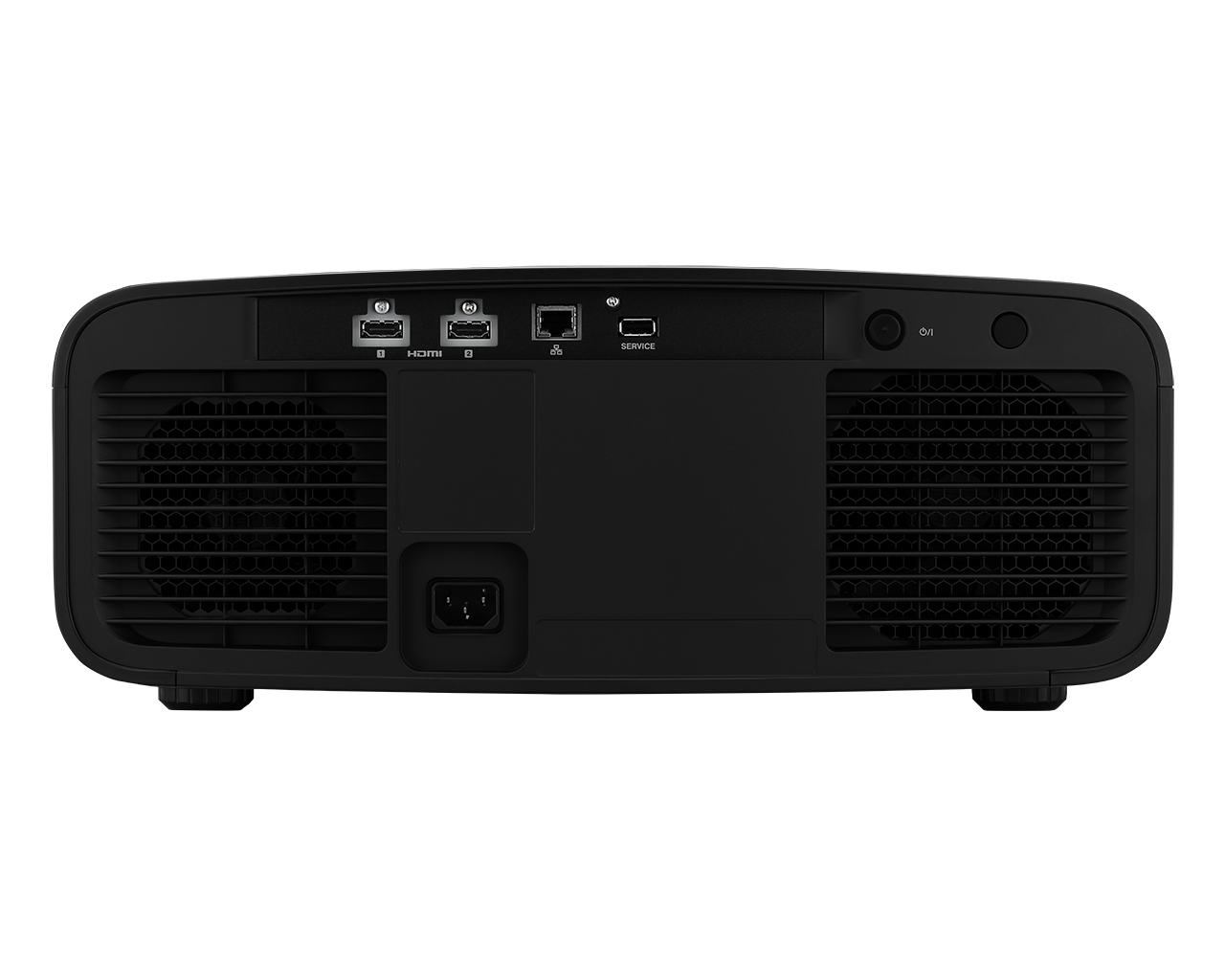

Balancing a truly captivating picture with a user friendly set up and design, the JVC DLA-NZ700 makes it easier than ever to bring the cinema home.

Features:

• Completely redesigned interior and exterior results in world's smallest native 4K projector
• 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• New BLU-Escent Laser Light Source
• High brightness of 2,300 lm provides vibrant and dynamic images
• New 80mm, 15-element, 11-group high-quality lens
• Native Contrast Ratio of 80.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Color Management System with 6-axis Matrix
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Auto-Calibration Function using an optical sensor.
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

Performance and ease of use in perfect harmony
With the 3rd generation 4K D-ILA chipset and BLU-Escent laser at its heart, the JVC DLA-NZ700 improves brightness and contrast levels for more sensational colour depth and realism. HDR10 is supported and is further optimised by Frame Adapt HDR, which dynamically tone maps the content in real time, giving you the best possible picture with all content. For a painless switch from big TV, its compact size and Auto Calibration control make it room-friendly and easy to use.

Optimised BLU-Escent laser for exceptional brightness and contrast
Featuring an optimal BLU-Escent laser backlight, the DLA-NZ700 improves both the brightness and contrast from the model below. Brightness improves by 15% to 2300 lumens, while the native contrast doubles to 80,000:1. What this means for the picture quality is a greater sense of depth, richer colour and even more lifelike images.

Auto Tone Mapping for enhanced HDR
Auto Tone Mapping analyses HDR encoded signals in real time and adjusts for the optimum dynamic range. This means that you get deeper blacks in darker scenes and higher peaks in brighter scenes, without losing colour definition. Smooth gradations between colours replicate what the human eye sees, making for enhanced realism.

Native UHD 4K from new D-ILA devices, for lifelike realism
Using three of JVC’s 0.69 inch 4K D-ILA imaging devices, the DLA-NZ700 continues to deliver exceptional, native 4K resolution. Projecting in this resolution gives detail and realism that's impossible to achieve with conventional Full HD resolution. UHD 4K resolution is four times greater than the more conventional 1920 x 1080 Full HD projectors and also lets you sit closer to the screen before losing image definition.

Supports HDR10+ and Gen 2 Frame Adapt HDR
HDR10+ offers scene-by-scene HDR mastering for the truest, most accurate HDR picture technology. Each scene is optimised, meaning the maximum amount of detail is shown – even in the brightest or darkest moments. Frame Adapt HDR instantly analyses the peak brightness in HDR10 content, optimising the dynamic contrast. Now in its second generation, the latest Frame Adapt features a Deep Black function that helps create even greater image depth.

See the true picture, with Filmmaker Mode
Filmmaker Mode lets you experience the cinematic vision, exactly as the director intended. Overriding the projector’s own motion and picture processing, Filmmaker Mode presents the correct aspect ratio, colour and frame rate – just as the filmmakers intended.

High quality lens for the crispest vision
For the crispest and sharpest images, this JVC uses a new, high quality lens. The 15-element, 11-group lens has an 80mm diameter, giving crystal-clear imagery right across the screen.

Flexible lens shift for ease of installation and fine-tuning
Lens shift lets you adjust the projection beam once installation has been completed. Physically being able to move the lens gives the ideal picture alignment without affecting the quality. With this JVC, you get a flexible +/- 70% vertical lens shift and +/-28% horizontal.

Optimise every cinematic moment, with the JVC DLA-NZ700.

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

Gen2 Frame Adapt HDR Function for
Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.
