Grandview 16:9 Edge R4 Fixed Frame Acoustic Screen

Grandview  Fixed Frame Edge Screens
The Edge series of fixed frame R4 Acoustic Projection screens offer the ultimate in 4K and 8K Ultra HD projection surface while also remaining uniformly flat. Ideal for permanent more dedicated cinema rooms, the fixed frame design with 15mm narrow surround gives a true cinematic experience.

High Tensioned Surface
The multiply ultra smooth 4K and 8K vinyl projection screen material is kept under high tension by a unique means found only in Grandview products. Steel bars are inserted into a looped seem that runs round the edge of the material. The bars are then fixed into the aluminium frame, causing the material to be pulled evenly from all four sides.

Frame Design

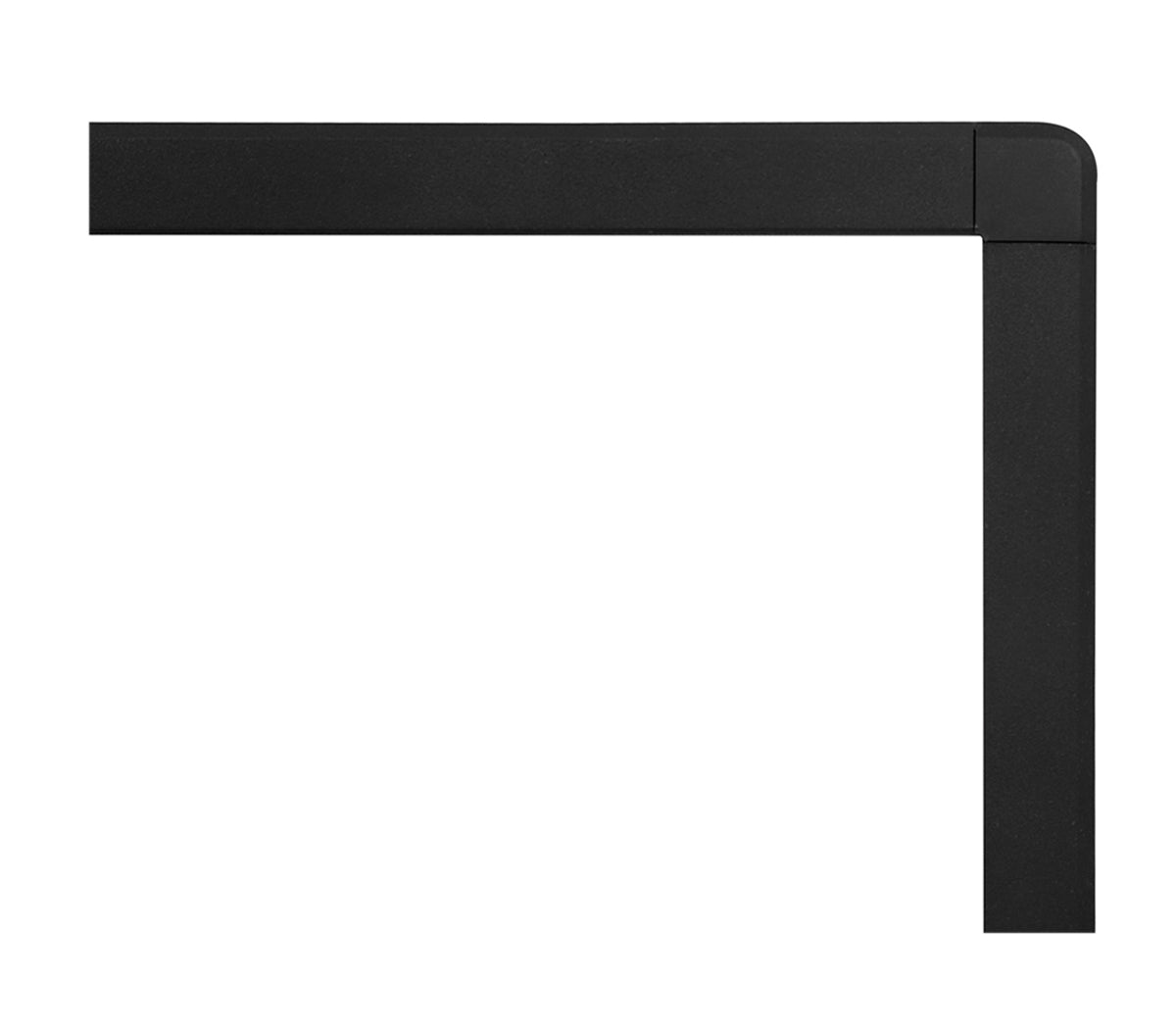

The super rigid narrow frame is only 15mm wide and constructed of extruded aluminium. The material is mounted to a 2nd larger frame located behind it which also features a central support bar resulting in a super rigid structure. The frame secured to the wall via two long aluminium brackets, the lower bracket allows the installer to lock the screen into place.

Material

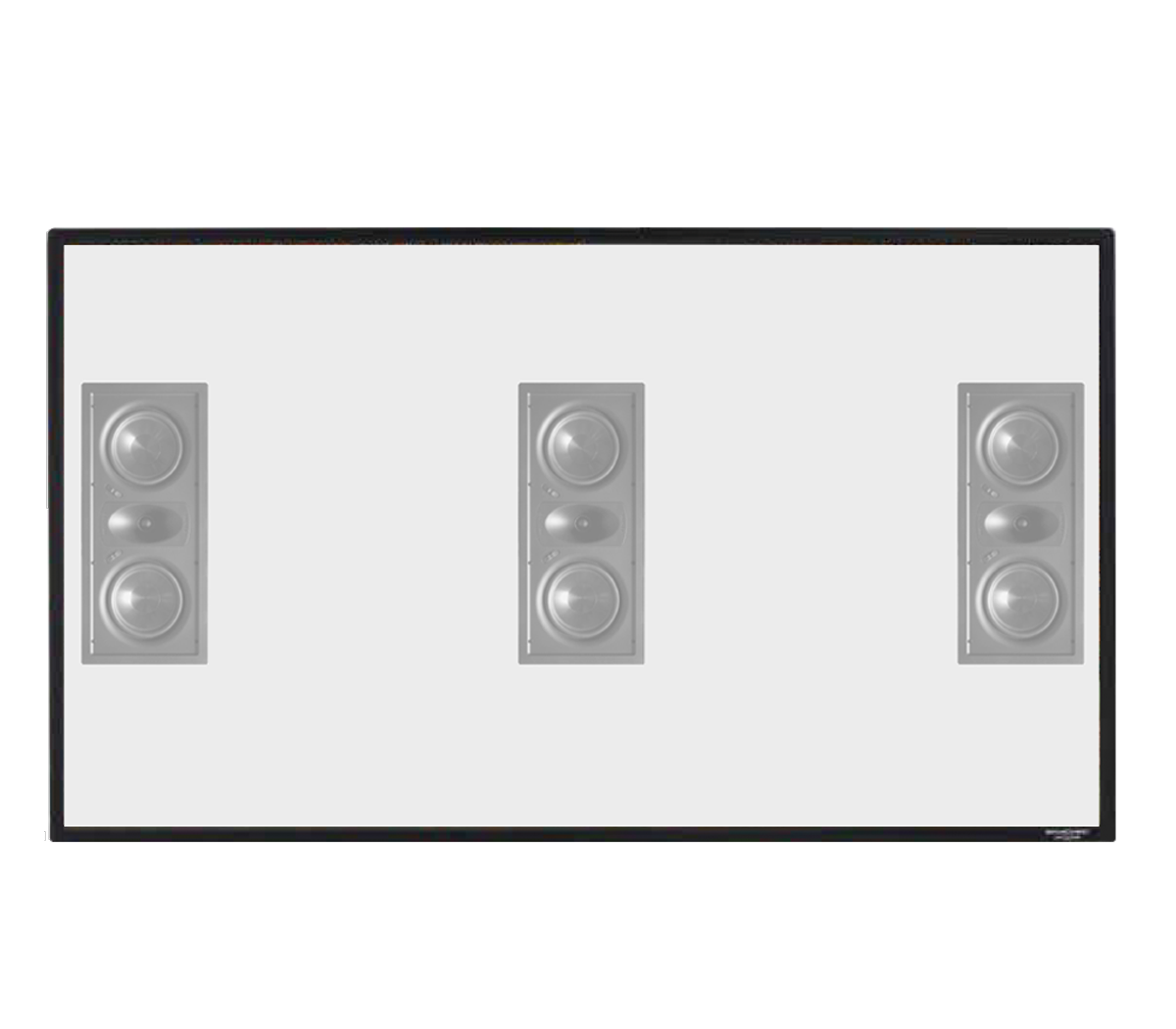

The acoustic woven screen material used by Grandview is a similar design used in commercial cinema screens. The material allows sound from rear mounted loudspeakers to pass through with the minimum of acoustic loss while retaining accurate colour saturation and contrast ratio. The material has a low gain rating of 1, keeping contrast levels high and offering a wide even viewing angle.
