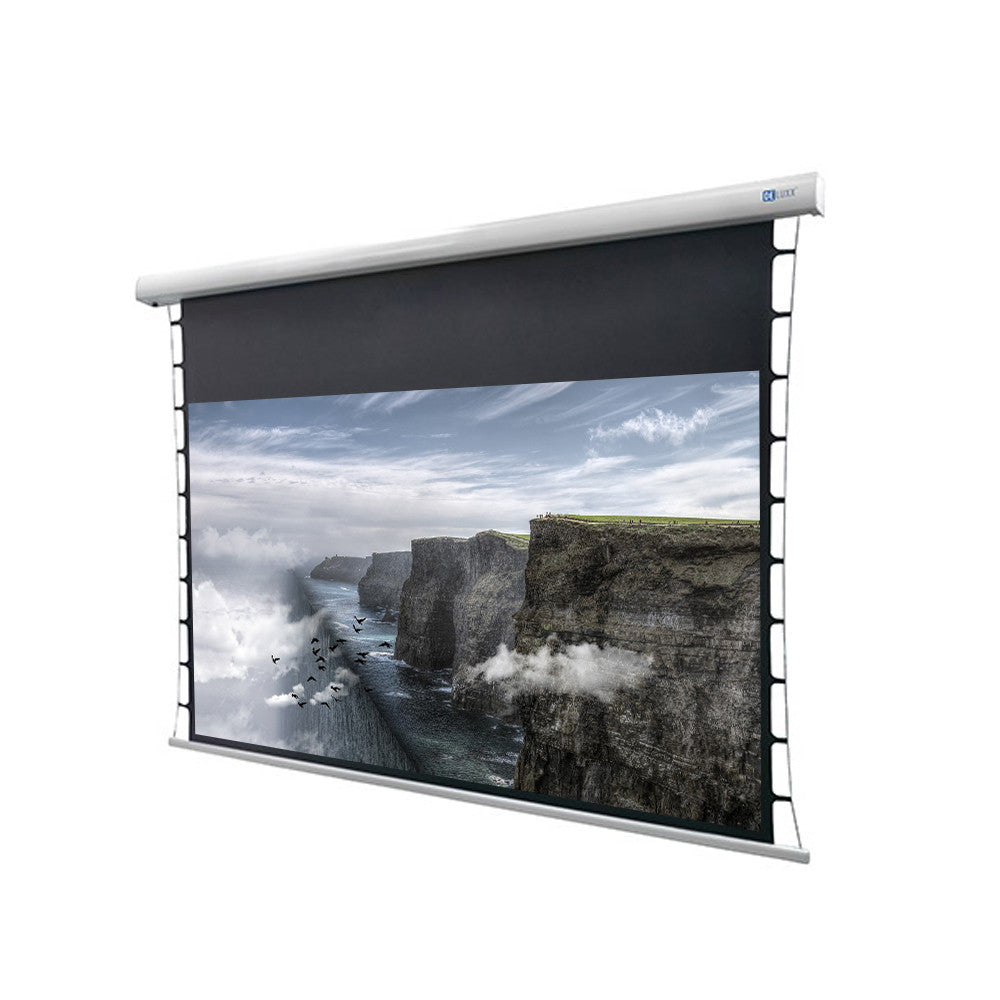

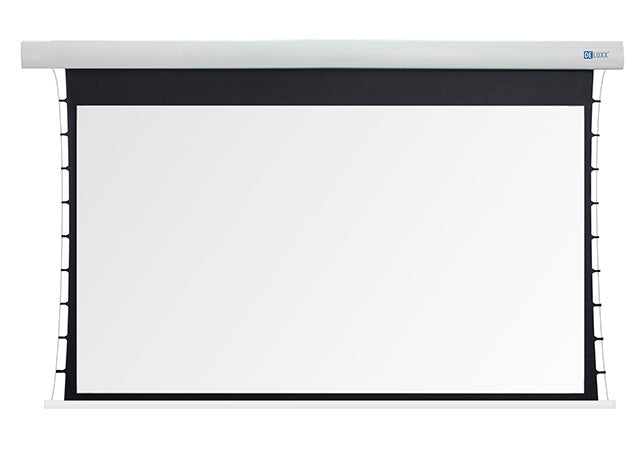

DELUXX Cinema Electric Screen Tension - 4k Pro Fibre MWHT

DELUXXCinema motorised screen Tension  177 x 99 cm,80' - 4k Pro Fibre MWHT

With the DELUXX 4k ProFibre MWHT Tension is a high-quality, motorised and with high connectionmotorised screen with a high level of connection & operating versatility in an attractivematt white housing. Unobtrusive for every living room and home cinema. TheScreen fabric is based on fibreglass and is more temperature-stable than pure PVC orVinyl fabric and can therefore also be used in temperature-critical areasAreas (please refer to the enclosed instructions)

DELUXX has created an extremely fine surface structure on the 4k Pro Fibre clothwhich is also suitable for 8K projections. This alsostandards are also covered and the robust fibreglass fabric carrier ensureslong-term enjoyment of use is guaranteedA very homogeneous image reflection with a wide viewing angle makes thisScreen of 'TYPE D' (diffuse reflective) the ultimate choice for all projection systemsfor all projection systems.
The gain of 1.2 brightens slightly without distorting colour values.

The lateral cable tension (Tension System) enables a very good flatnessand can be infinitely readjusted on each side if required. This means thateffectively avoid 'dog-ears' in the projection area.

The DELUXX Cinema Tension motorised screen - 4K Pro Fibre is supplied with anextensive range of accessories and can be controlled in a variety of ways: wireless radioand IR remote control are included, but also the wireless integration into yourLogitech remote control (codes are stored at Logitech) is no problem.There is also a 5V-20V trigger input (screen moves down/up automatically when the projector is on/offautomatically down/up) as well as professional integration via RS232/RS485 intoSystems from e.g. Crestron or RTI, as well as potential-free contacts availableAvailable. The choice is yours!

Screen fabric:

• visible, projection surface: 177 x 99 cm, (80')
• 1.2 gain 4K Pro Fibre technology with the finest surface structure Surface structure also suitable for 8K
• Wide viewing angle of over 150° and suitable for suitable for all projection types (ultrashort & short and long throw)
• Extremely fine fabric structure: suitable for 8K
• Wide 150 degree viewing angle
• black masking 5cm left, right and bottom, 66cm black leading at the top
• black leader adapted to the format
• Dimensionally stable & rigid Screw winding shaft with a large diameter for optimum flatness and Freedom from streaks

Mounting and design:

• Matt white aluminium canvas housing in a discreet design
• intelligent, unobtrusive & flexible mounting kit for wall or ceiling installation incl. drilling template
• Easy installation and plug & play connection Power cable via IEC connector
• special, lateral tension system straightens out 'dog-eared'
• Very quiet DELUXX quality tubular motor: durable and smooth-running

Certifications:
ROHS, REACH, CE - 2014/53/EU

Control of the screen included in the scope of delivery:
- Integrated radio receiver + separate infrared receiver with remote controlassociated remote control
- side buttons on the housing with 3 functions: Up, stop and down
- Trigger: 5V-20V (AC/DC)
- RJ12 (RS232/RS485 protocol) connection for RTI, Crestron, Control4 etc.
- potential-free contacts via RJ12, relay controllable

Scope of delivery:
- DELUXX cable tensioning motorised screen with 'DELUXX 4k Pro FibreMatt white' fabric
- Cloth: Type D, matt white, luminance factor according to DIN19045 approx. 1.2
- Cold appliance cable in white
- RF remote control
- IR remote control
- 5m trigger cable
- IR receiver eye
- Wall/ceiling mounting bracket
- Drilling template for perfect installation
- Instructions & screen handling instructions
- still required: batteries 3x CR2032

Specifications by Size
