Product Description

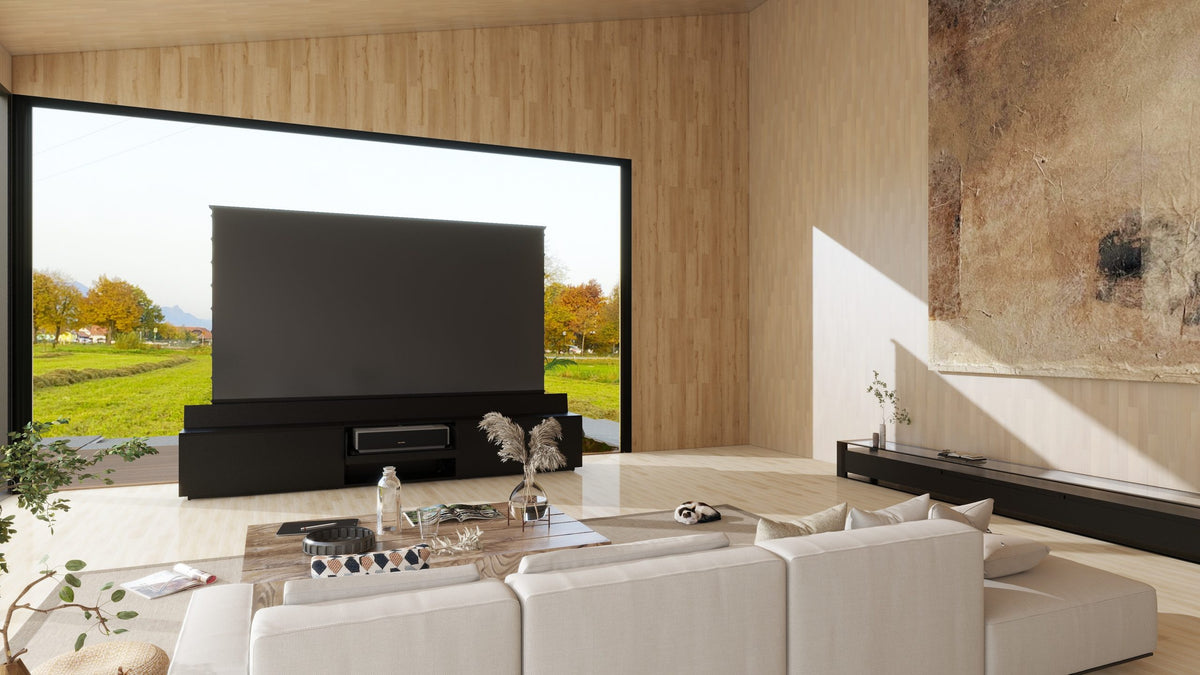

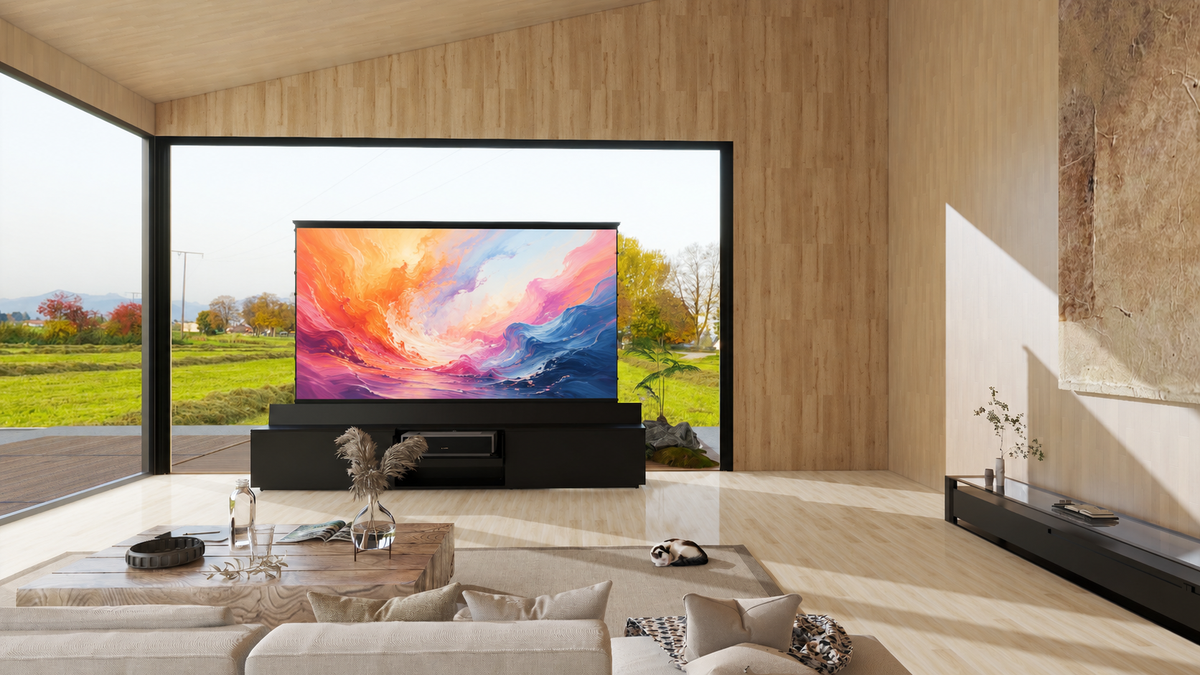

The MaxLight MPC500R is a premium, fully concealed motorised UST cabinet built around a unique central rotating flip-out mechanism. It integrates your ultra-short-throw projector and floor-rising screen into one refined piece of furniture, and supports UST projectors from 0.16:1 throw ratio and above. When the projector powers on, the centre section rotates the projector into position, the screen cover opens and the floor-rising screen elevates. Power off and the whole sequence reverses, leaving the projector, screen and cabling completely hidden.
Custom Made for Your Projector & Screen: Important Prior to Ordering
Every MPC500R is made to order and built around your exact setup. After you order, we will ask you to confirm your projector model, screen brand and model, and screen size. Maxlight then tailors the cabinet's internal layout to fit your equipment, with any minor modifications included at no extra charge.
Lead time: 10–12 weeks from order to delivery. The cabinet is not held in UK stock. It is manufactured and shipped by sea in three pre-assembled sections; air freight is not available. Please allow the full lead time, as it cannot be shortened.
As a custom-made item, this cabinet is subject to our Trade Terms. It is non-returnable and non-refundable unless faulty, in which case it will be repaired or replaced.
Questions about compatibility or installation? Call us on 01924 589 589 before ordering and we'll check your setup for you.
Key Features
- Custom built for your setup: each cabinet is made to order, with the internal layout tailored to your exact projector and screen. Not limited to one projector model, screen brand or fixed screen size, and minor modifications are included at no extra cost
- 0.16:1+ UST support for ultra-short-throw projectors from 0.16:1 throw ratio and above
- Rotating flip-out design: not a simple stretch-out tray. The central mechanism rotates the projector into position
- Fully concealed: projector, floor-rising screen and cabling are hidden when the cabinet is closed
- Synchronised one-touch operation: projector, centre section, screen cover and floor-rising screen move as one system
- Purpose-built MaxRemo app (iOS and Android) for fine adjustment and system control over Bluetooth
- Compact 500 mm cabinet depth, made possible by the rotating mechanism
- Side-to-side airflow supports heat dissipation for high-power UST laser projectors

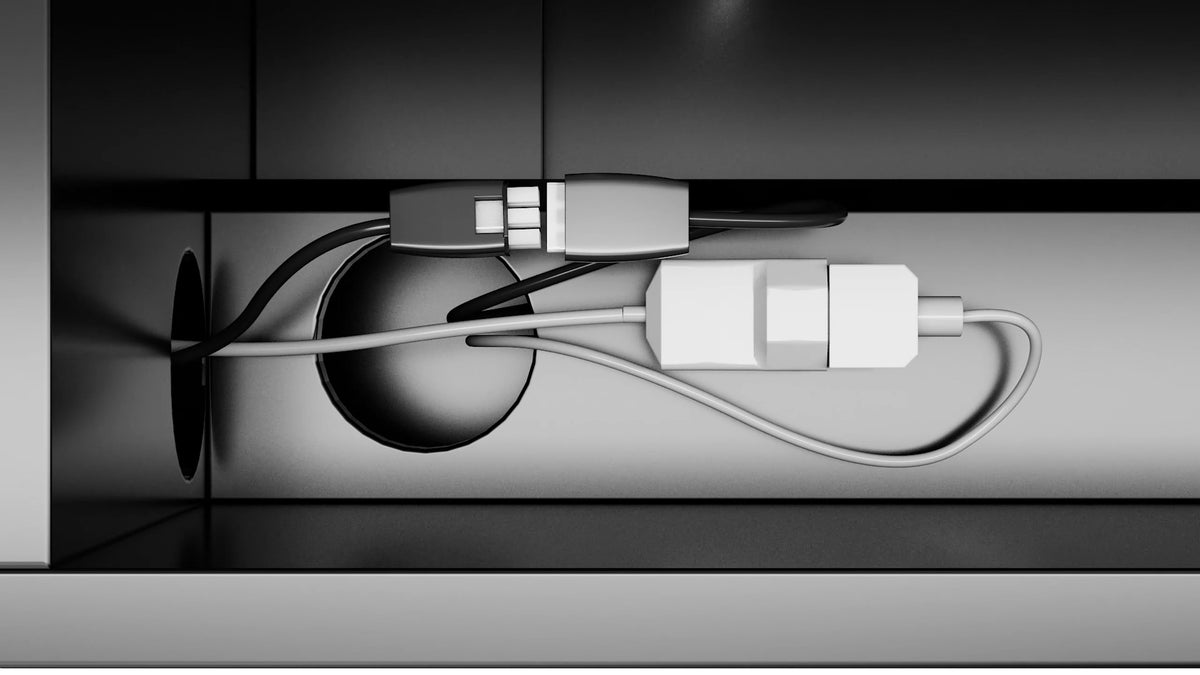

- Integrated cable management: pre-cut access holes between the side cabinets and centre section for power, HDMI and AV cables
- Modular & customisable: 100″ and 120″ standard versions, with extended side cabinets and bespoke finishes available on request

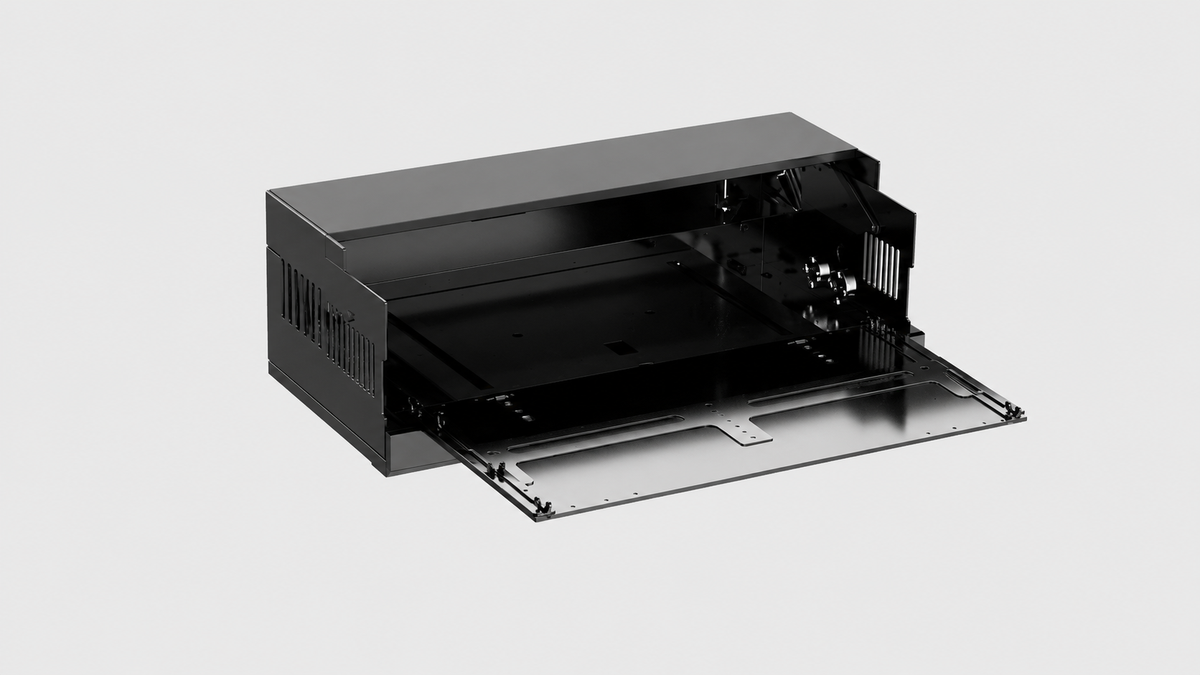

Central Rotating Flip-Out Mechanism
Unlike ordinary stretch-out projector cabinets, the MPC500R rotates the centre projector section into position. This is the key to its ultra-short-distance compatibility, fully concealed appearance and compact cabinet depth.
Synchronised One-Touch System
When the projector powers on, the cabinet opens in sequence: the centre projector section rotates into position, the screen cover opens, and the floor-rising screen elevates. When the projector powers off, the entire process reverses and closes with equal precision.

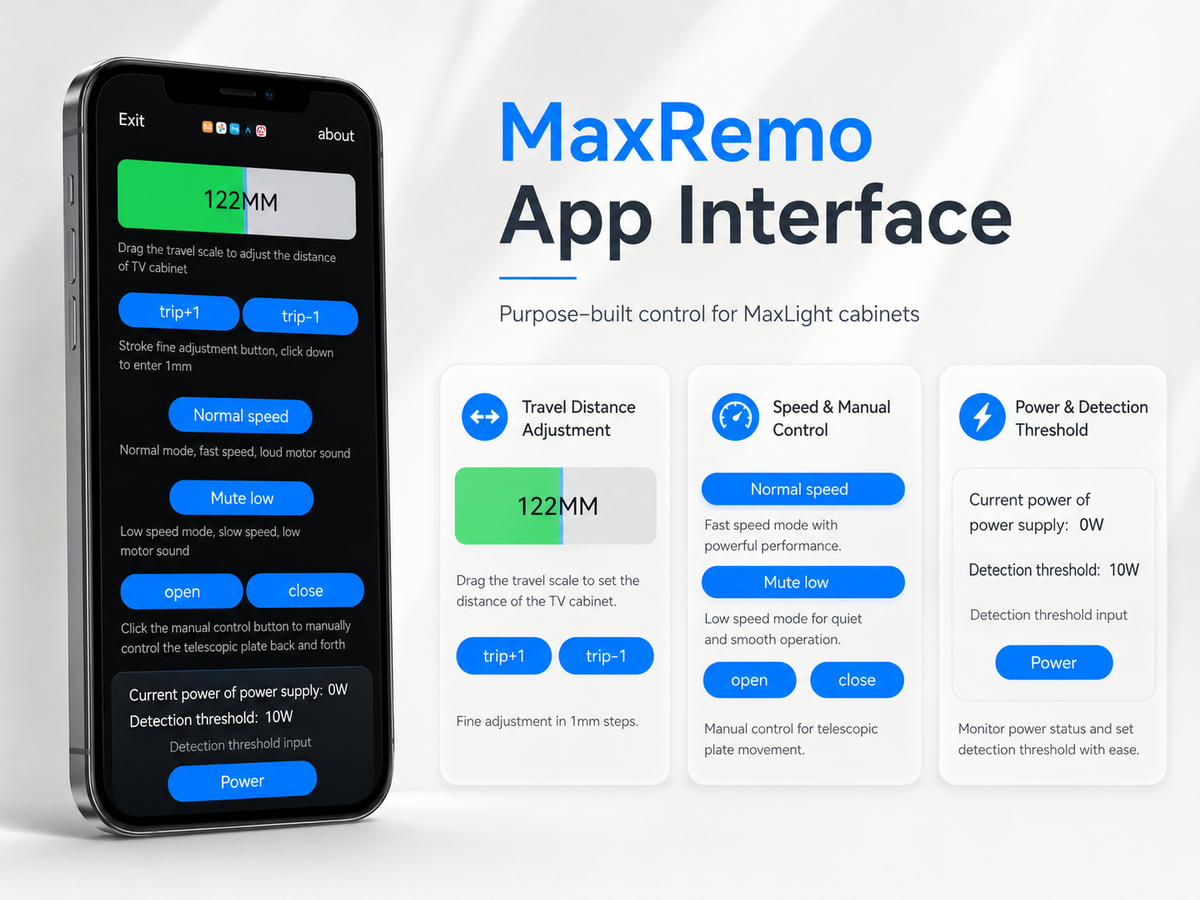

MaxRemo App Control
MaxRemo is purpose-built for MaxLight projector cabinets. It connects to the cabinet by Bluetooth and gives you direct control over setup, movement and power detection settings.
- Travel distance adjustment: set the centre projector section travel distance with slider control and 1 mm fine adjustment
- Manual open / close: operate the cabinet manually when needed, independent of the automatic sequence
- Power detection threshold: monitor projector power and adjust the trigger threshold for current and future projector models
Future-Proof & Clean Installation
The MPC500R does not restrict you to one specific projector model. The adjustable power detection threshold gives you confidence when upgrading to another UST projector in the future. Cables can be routed through the cabinet, keeping the visible setup neat and furniture-like.
Compatibility
UST projectors: throw ratio 0.16:1 or above. The projector and floor-rising screen must be powered through the cabinet system for synchronised operation.
Made to suit your equipment: the MPC500R is manufactured to order and can be configured to accommodate UST projector models. The screen compartment is not restricted to one fixed size or to Vividstorm screens. Before production, we need your:
- Projector brand and model
- Screen brand and model
- Screen size
If any minor internal modification is needed for compatibility, it is included at no extra charge. Final compatibility depends on projector size, cable position and ventilation clearance.
Confirmed compatible by Maxlight / D&H: Hisense PX4-Pro, Epson EH-LS970 and XGIMI AURA 3 Max, including 120″ setups with Vividstorm S Pro or Celexon floor-rising screens. The MPC500R is often the only Maxlight cabinet that suits projectors with very short throw ratios or raised lens housings.
Not sure if your projector fits? Read our compatibility guide: Is my projector compatible with the Maxlight cabinet? or call us on 01924 589 589 and we'll check for you.
Specifications & Measurements

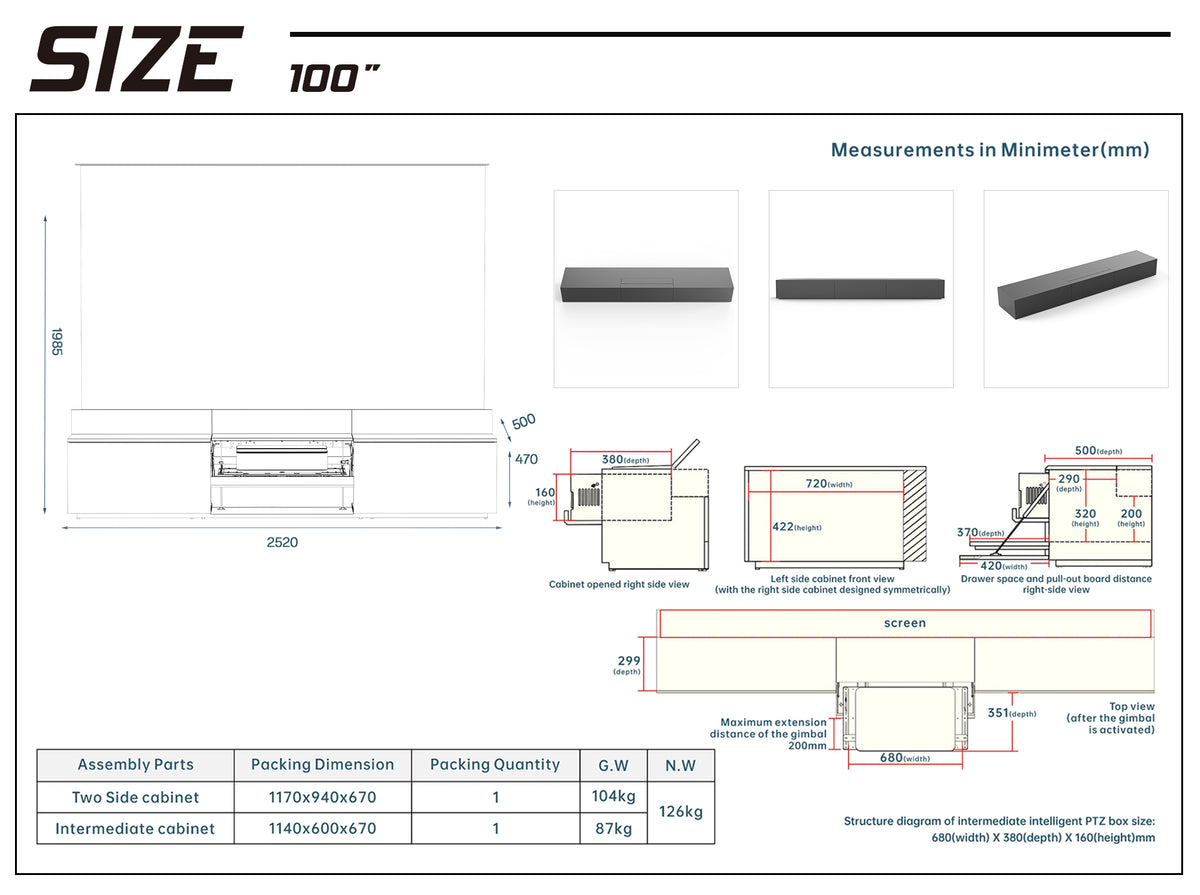

MPC500R 100″ Dimension Drawing

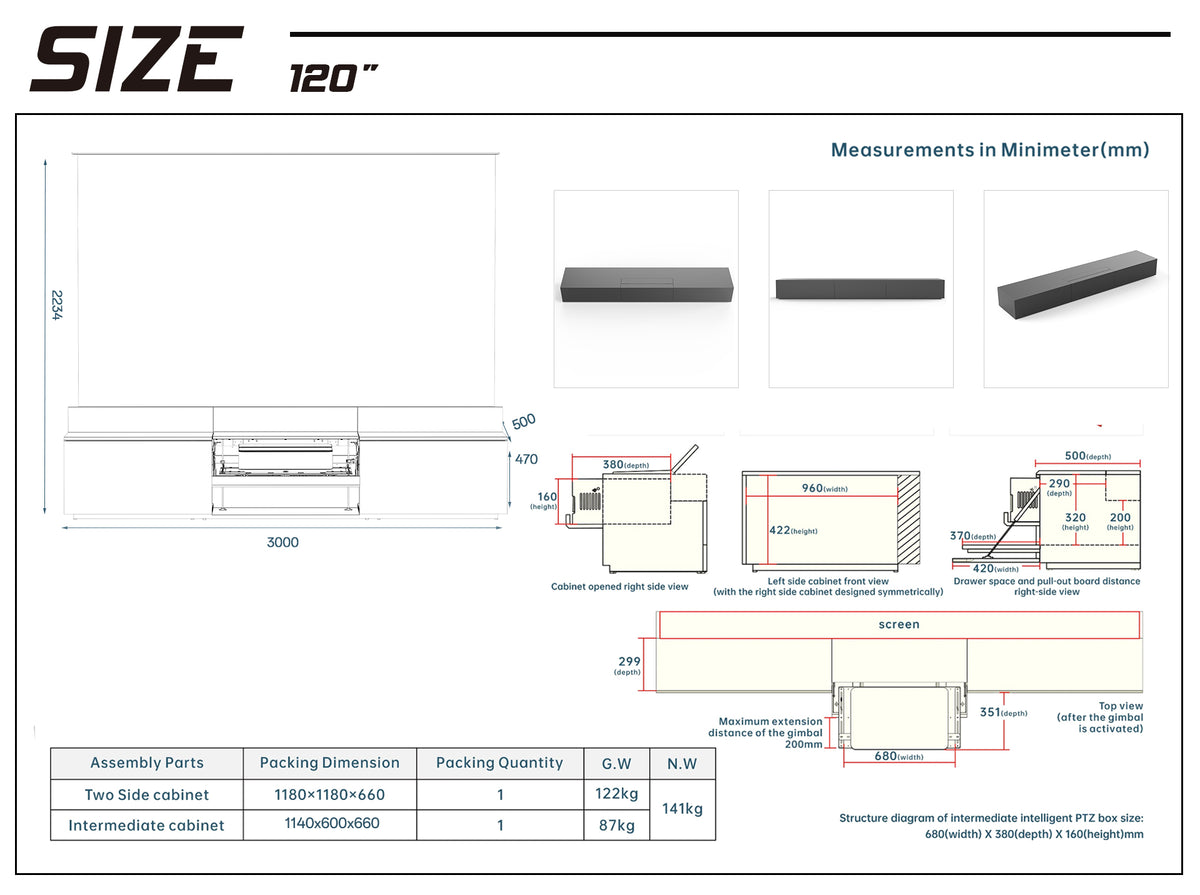

MPC500R 120″ Dimension Drawing
Specifications
| Specification | MPC500R 100″ | MPC500R 120″ |
|---|---|---|
| Intended screen size | 100″ floor-rising screen | 120″ floor-rising screen |
| Closed cabinet (W × D × H) | 2520 × 500 × 470 mm | 3000 × 500 × 470 mm |

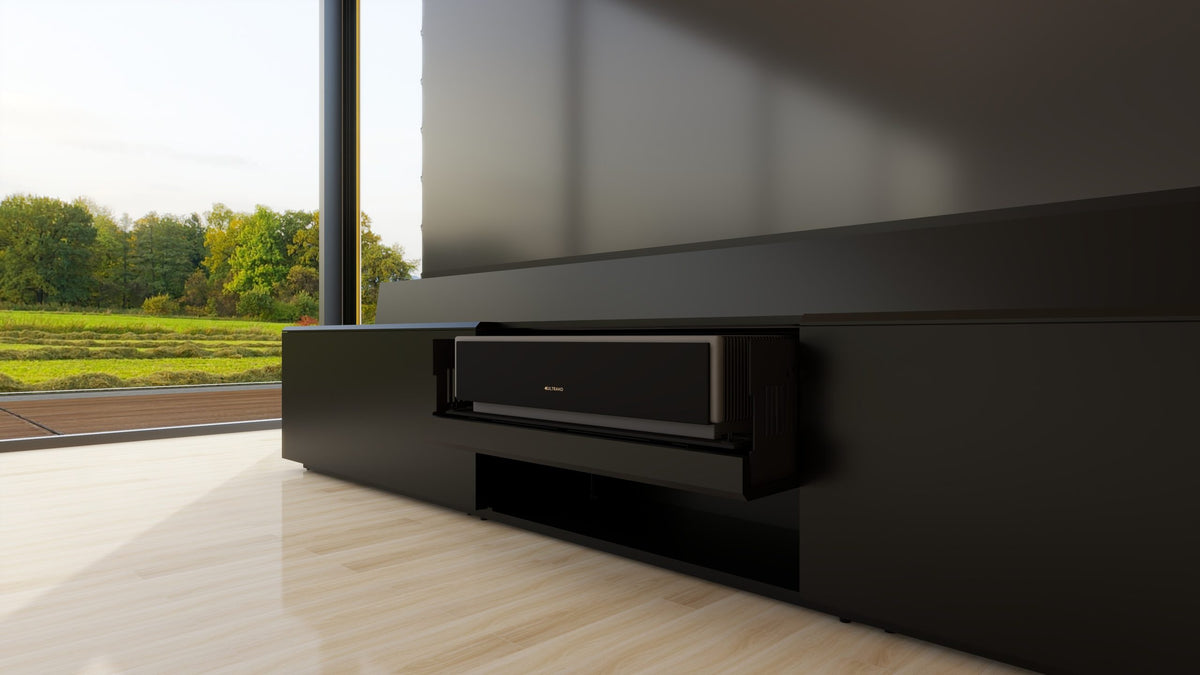

| Projector bay (W × D × H) | 680 × 380 × approx. 160 mm (central rotating projector bay) | |
| Compatible projector throw ratio | 0.16:1 and above | |
| Max overall depth, projector section fully extended | Please ask | 851 mm (351 mm beyond the closed front face) |
| Control | Automatic projector power detection; MaxRemo app (iOS / Android) via Bluetooth | |
| Standard finishes | Natural Oak, Walnut, Black Wood Pattern, Matte Black, Matte White (bespoke colours and finishes on request) | |
| Supplied as | Three pre-assembled sections: left-hand cabinet, centre cabinet and right-hand cabinet | |
| Shipping weight | 220 kg | 240 kg |
| Lead time | 10–12 weeks from order to delivery (made to order, shipped by sea) | |
Screen Height Guide (120″ example)
Based on a Vividstorm S Pro 120″ floor-rising screen with the housing recessed 120 mm into the cabinet, screen fully raised:
- Floor to bottom of visible image: approx. 700 mm
- Floor to top of visible image: approx. 2,194 mm
- Overall height to top of fully raised screen: approx. 2,234 mm
- Recommended minimum ceiling height: approx. 2,384 mm (allows 150 mm headroom)
These are nominal dimensions, not guaranteed installation measurements. The factory-set black border height can vary slightly between screens. If your ceiling height is close to these limits, please contact us before ordering.
Finish Options
Other colours or finishes can be requested. We will need to confirm the exact finish, price and lead time before your order is placed. Custom finishes are matched as closely as possible, but an identical colour, grain and texture cannot be guaranteed.
MPC500R vs MPC580 (120″)
| Specification | MPC500R (this model) |
MPC580 |
|---|---|---|
| Mechanism | Rotating flip-out centre section | Motorised projector platform |
| Compatible throw ratio | 0.16:1 and above | 0.20–0.25 |
| Closed cabinet (W × D × H) | 3000 × 500 × 470 mm | 3000 × 580 × 330 mm |
| Max overall depth, projector extended | 851 mm | 780 mm |
| Forward extension beyond closed front | 351 mm | 200 mm |
| Floor to bottom of visible image* | Approx. 700 mm | Approx. 560 mm |
| Overall height, screen fully raised* | Approx. 2,234 mm | Approx. 2,094 mm |
| App control | Yes (MaxRemo, Bluetooth) | — |
| Screen fully concealed when closed | Yes | Yes |
*Nominal figures based on a Vividstorm S Pro 120″ screen.
