Product Description

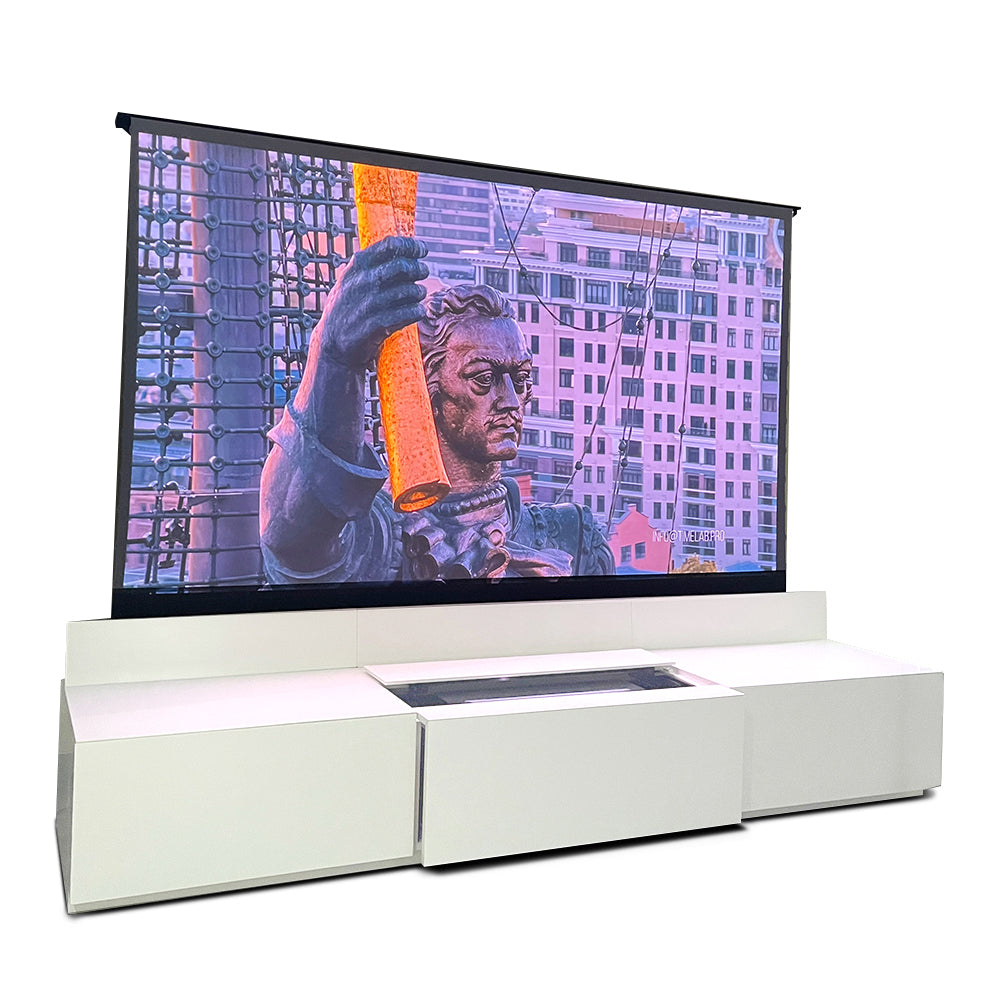

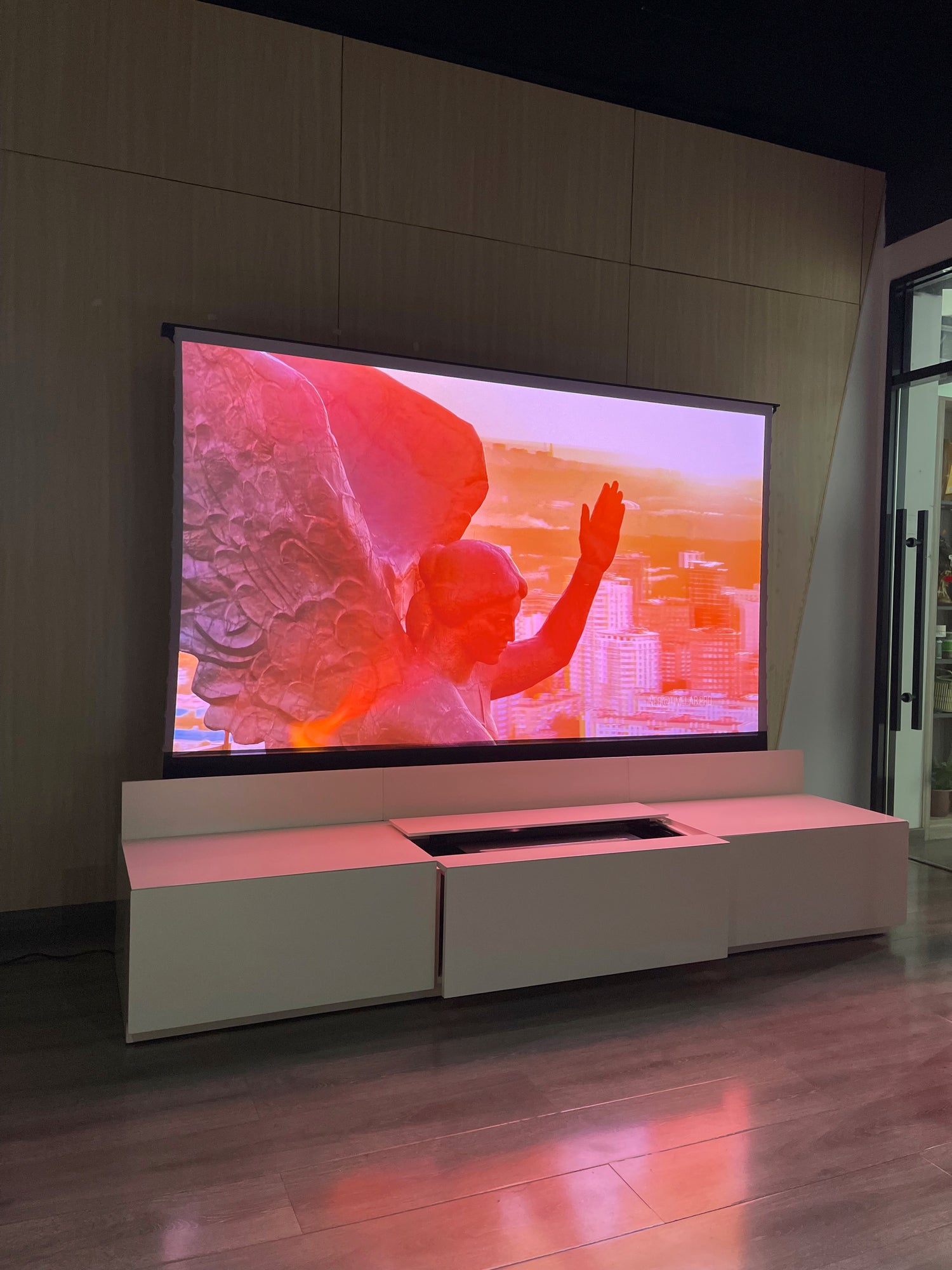

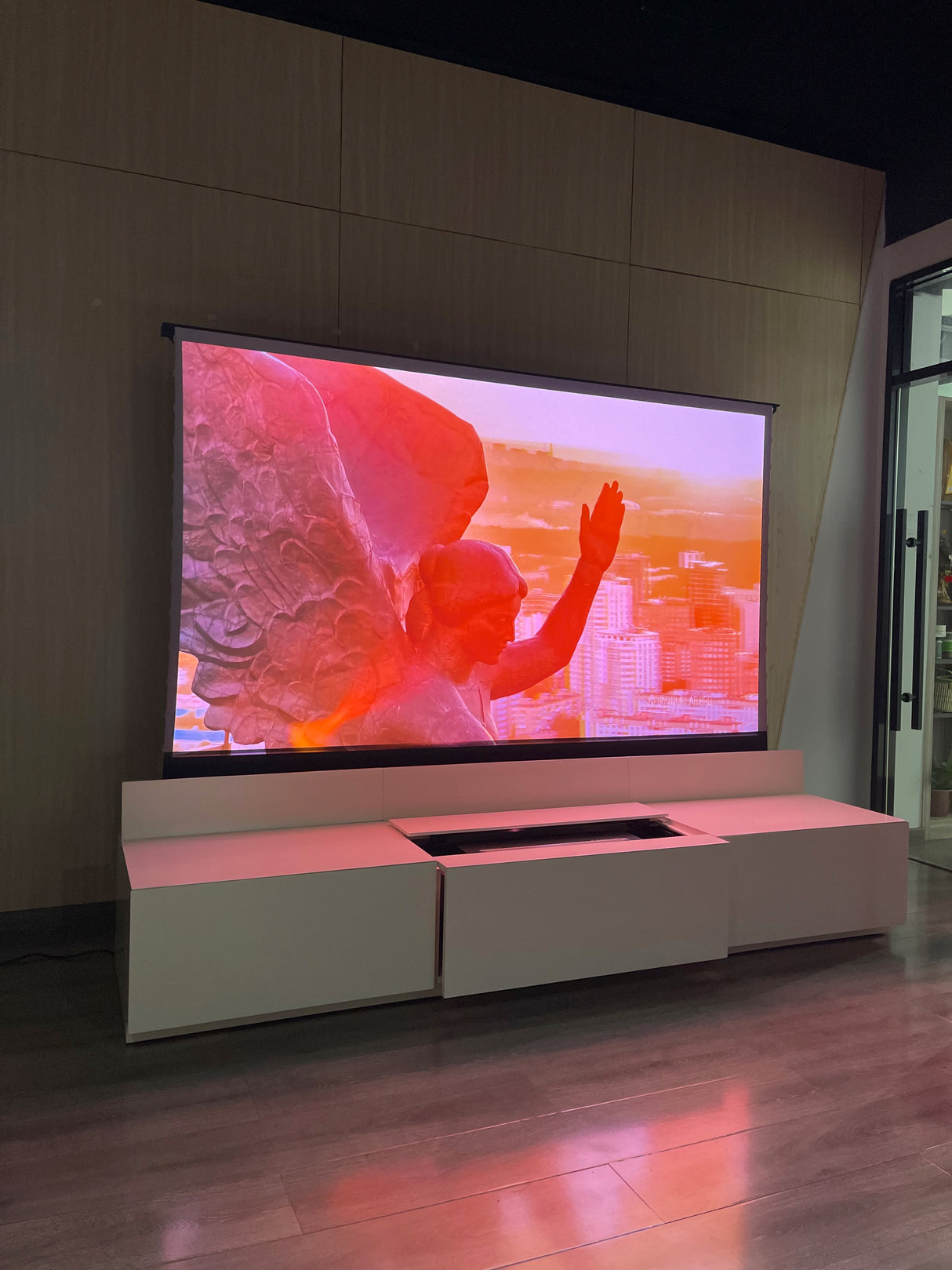

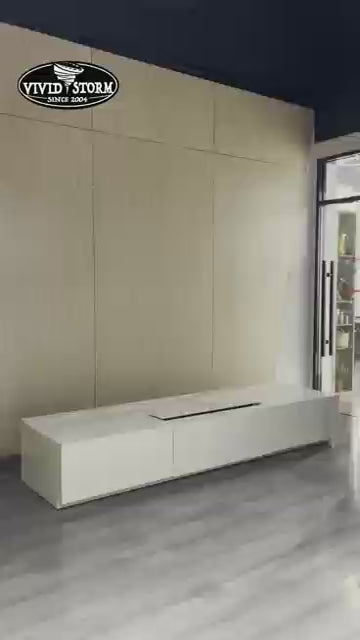

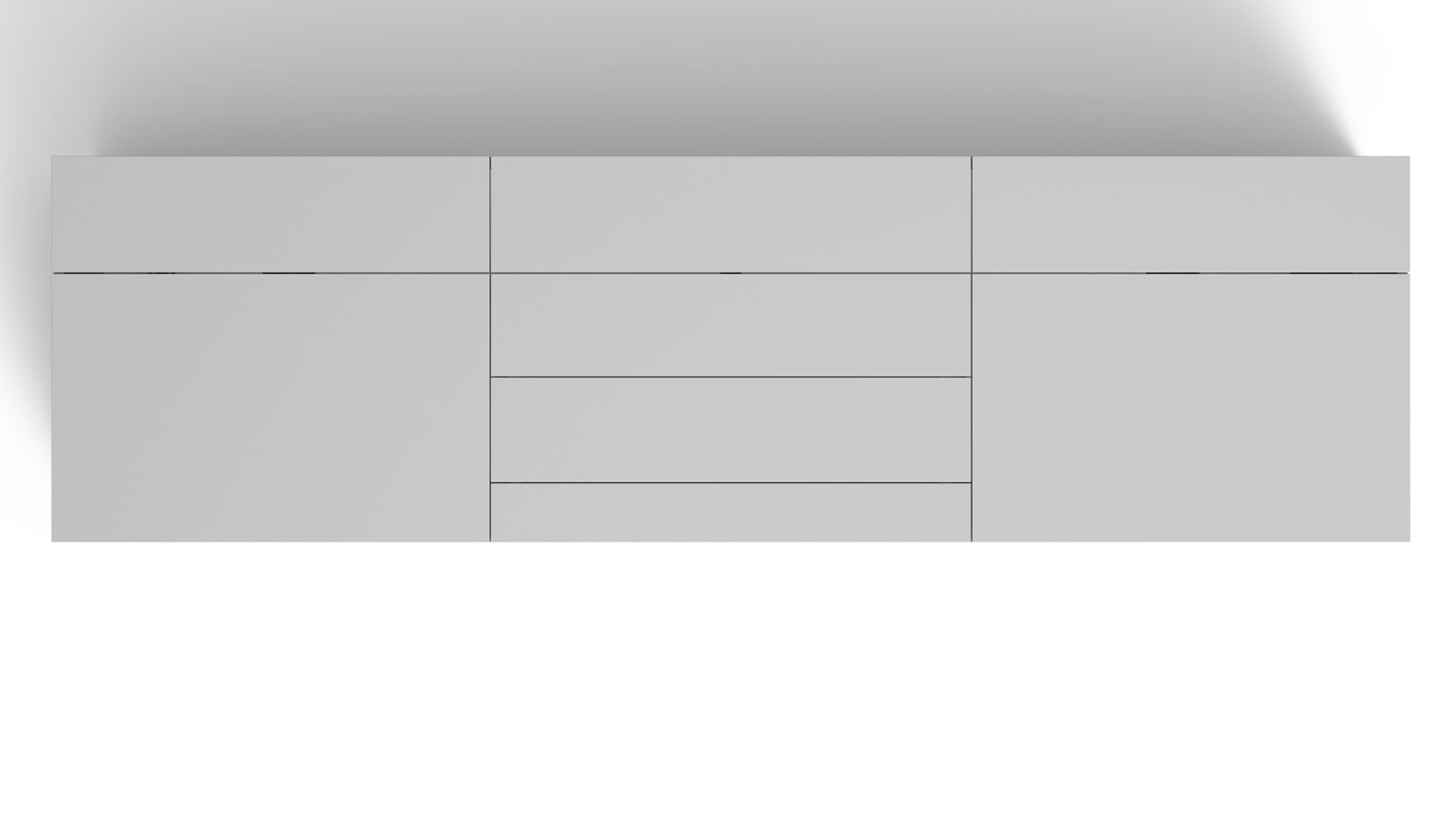

The MaxLight SpaceMaster is a fully concealed UST projector cabinet that hides your projector, motorised screen, and AV equipment in one seamless unit. The motorised central platform opens and closes silently, and the projector, drawer, screen, and lid all sync together — one press of your projector's remote raises and powers everything in one go.
Key Features

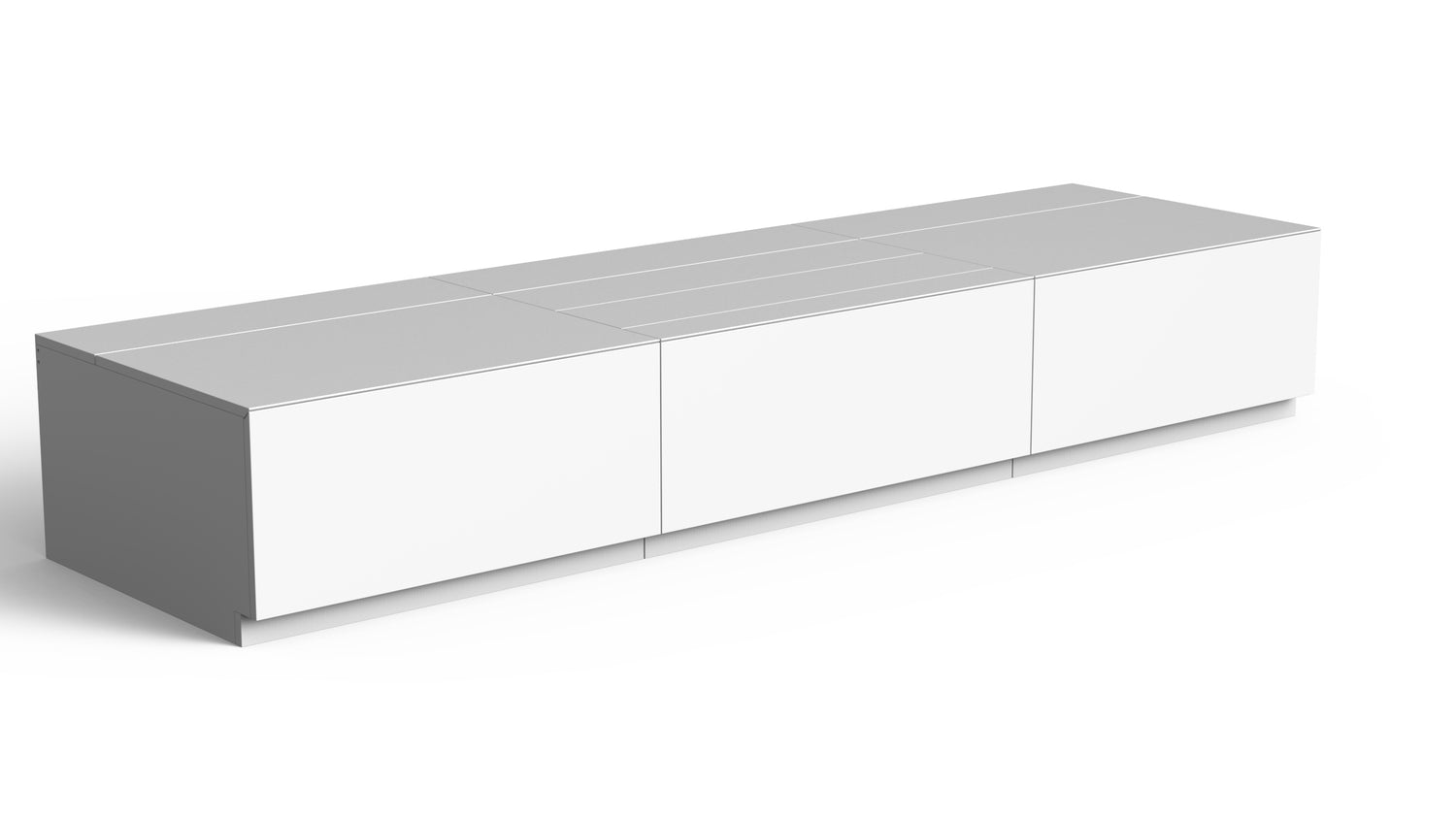

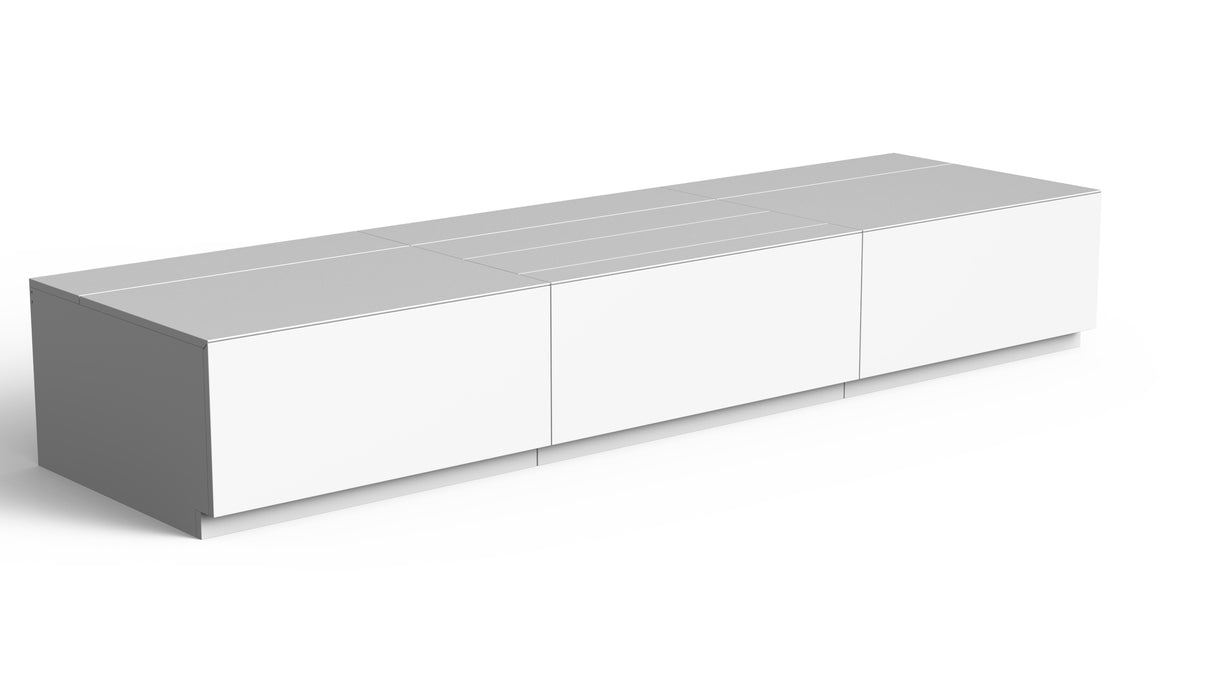

- Fully concealed seamless design — everything hides inside when the system isn't in use
- Super-silent motor with adjustable, precise drawer travel (95–230 mm) and memory function
- Bluetooth smart control via dedicated iOS / Android app for fine-tuning travel distance and firmware updates
- Hard-wired component sync between screen, drawer, lid and cooling fans — more reliable than wireless USB triggers used by other cabinets

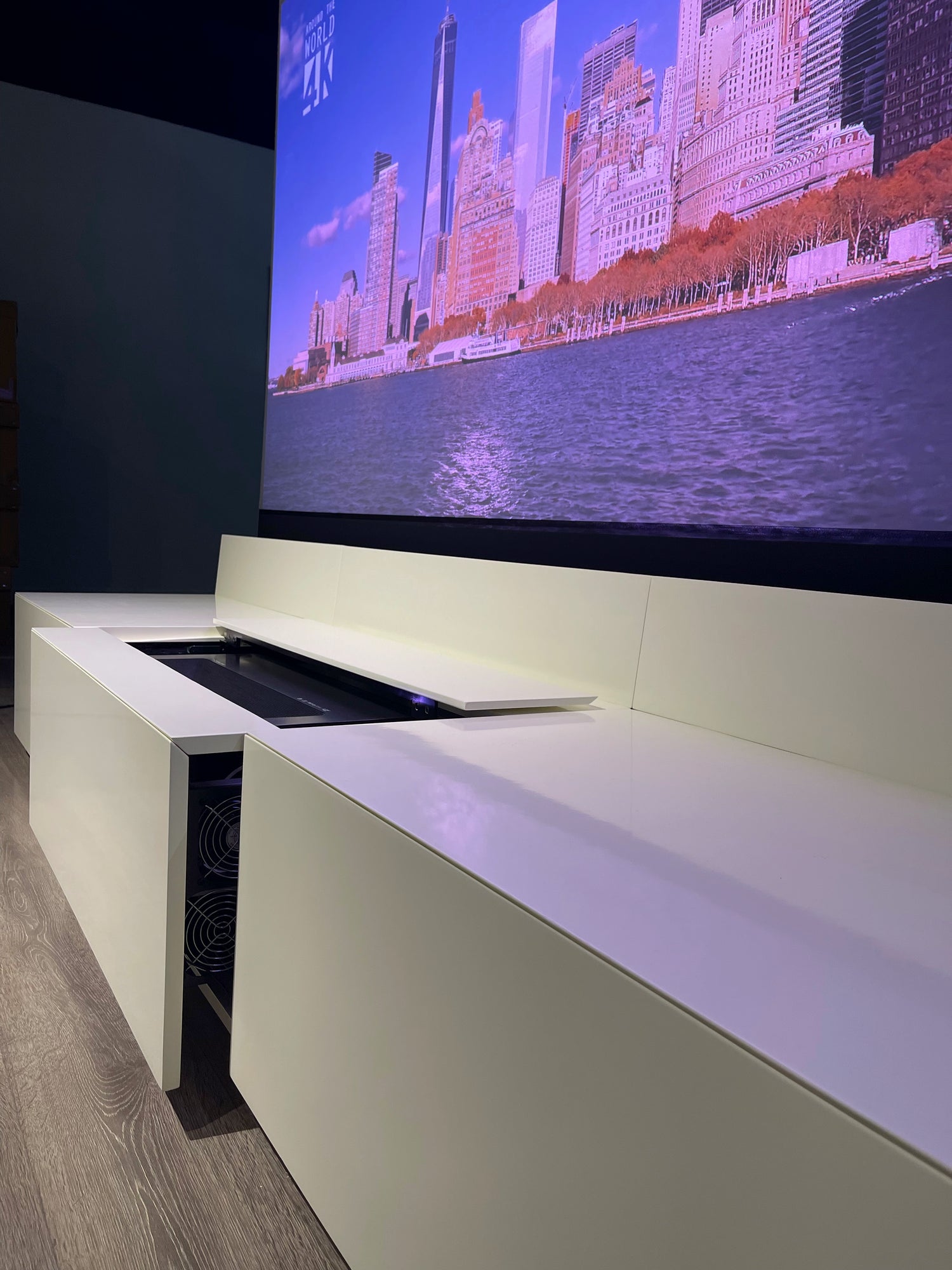

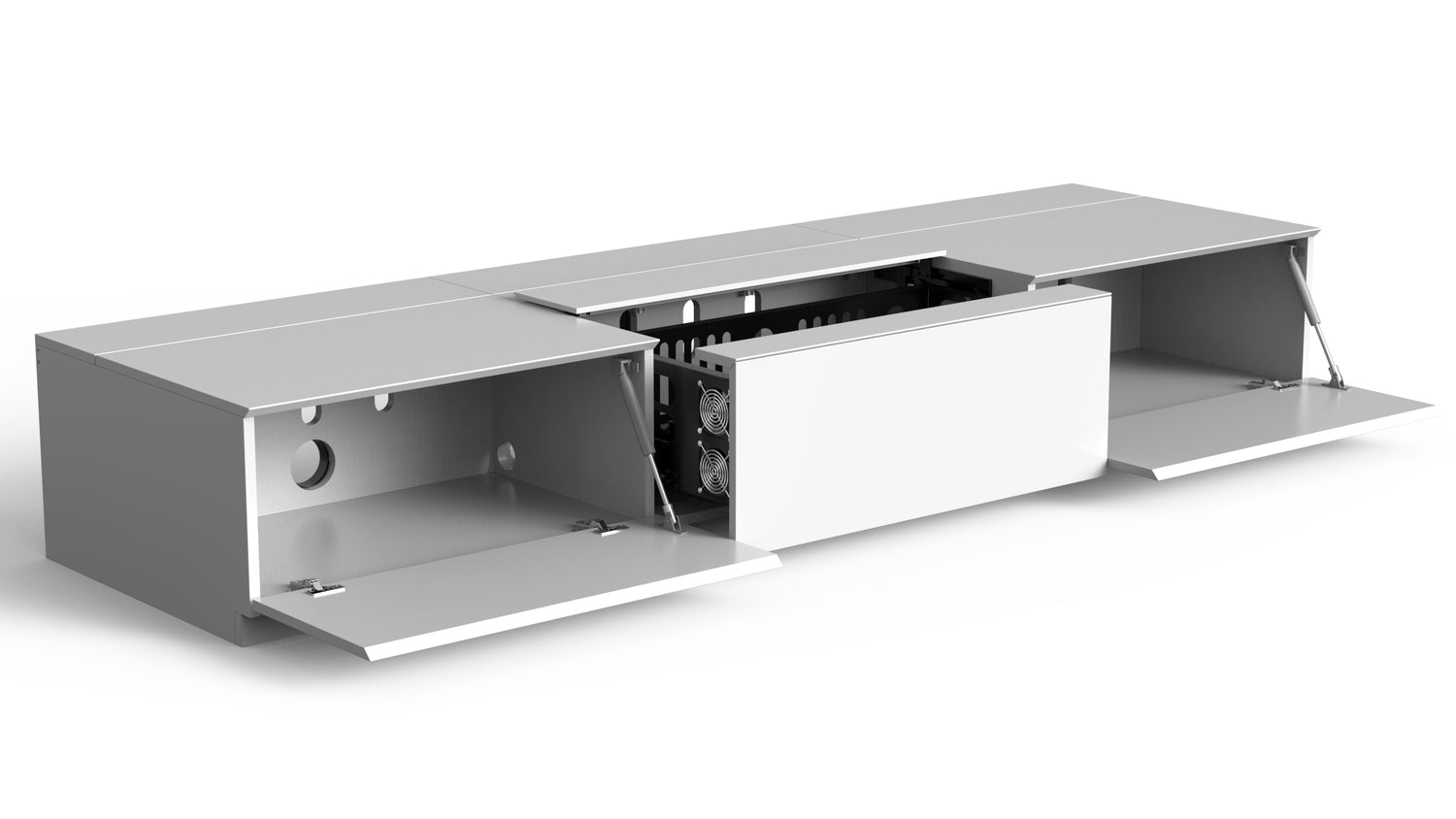

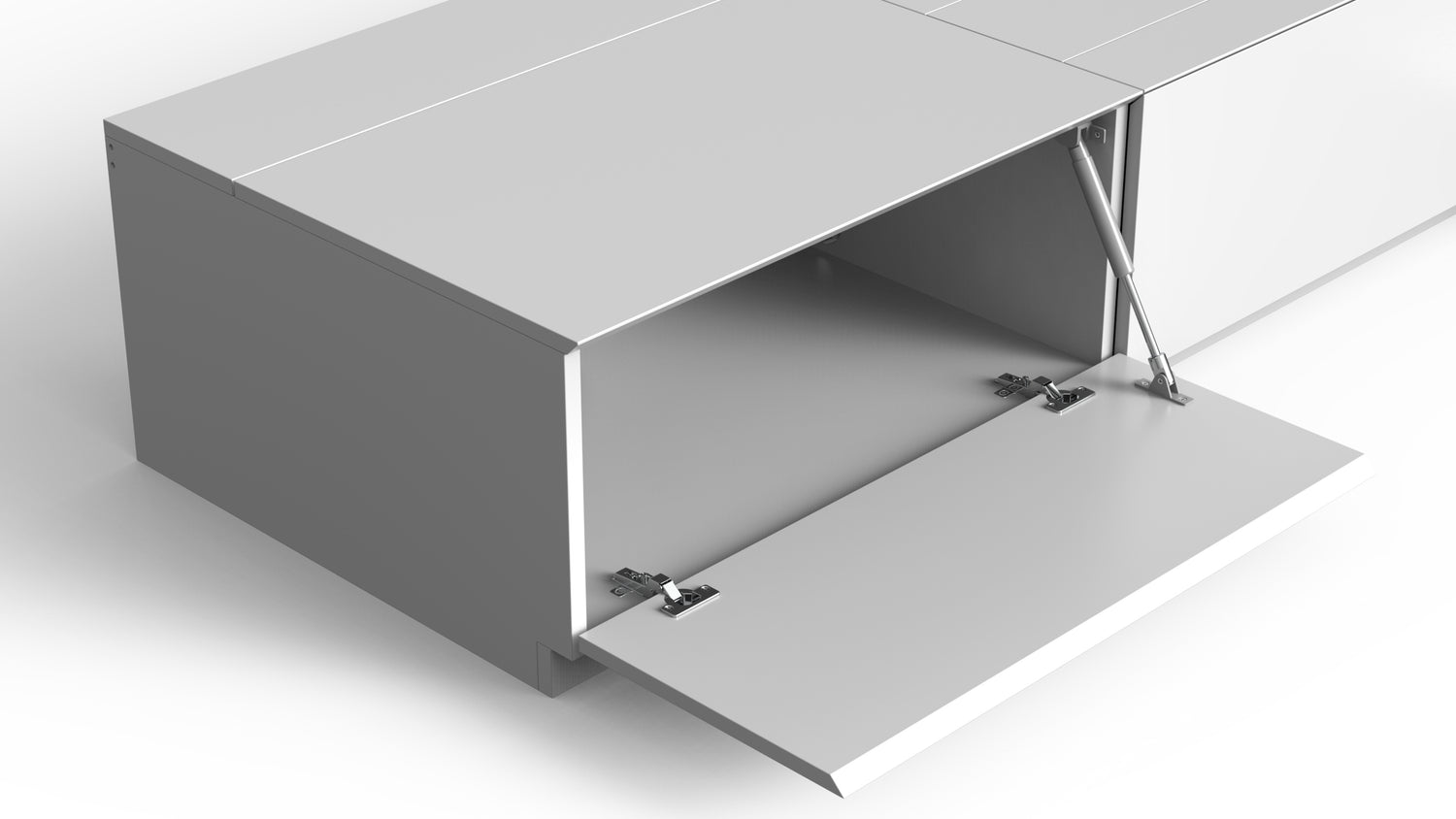

- Spacious side cabinets with 4 pairs of cooling fans and a pre-installed IR repeater

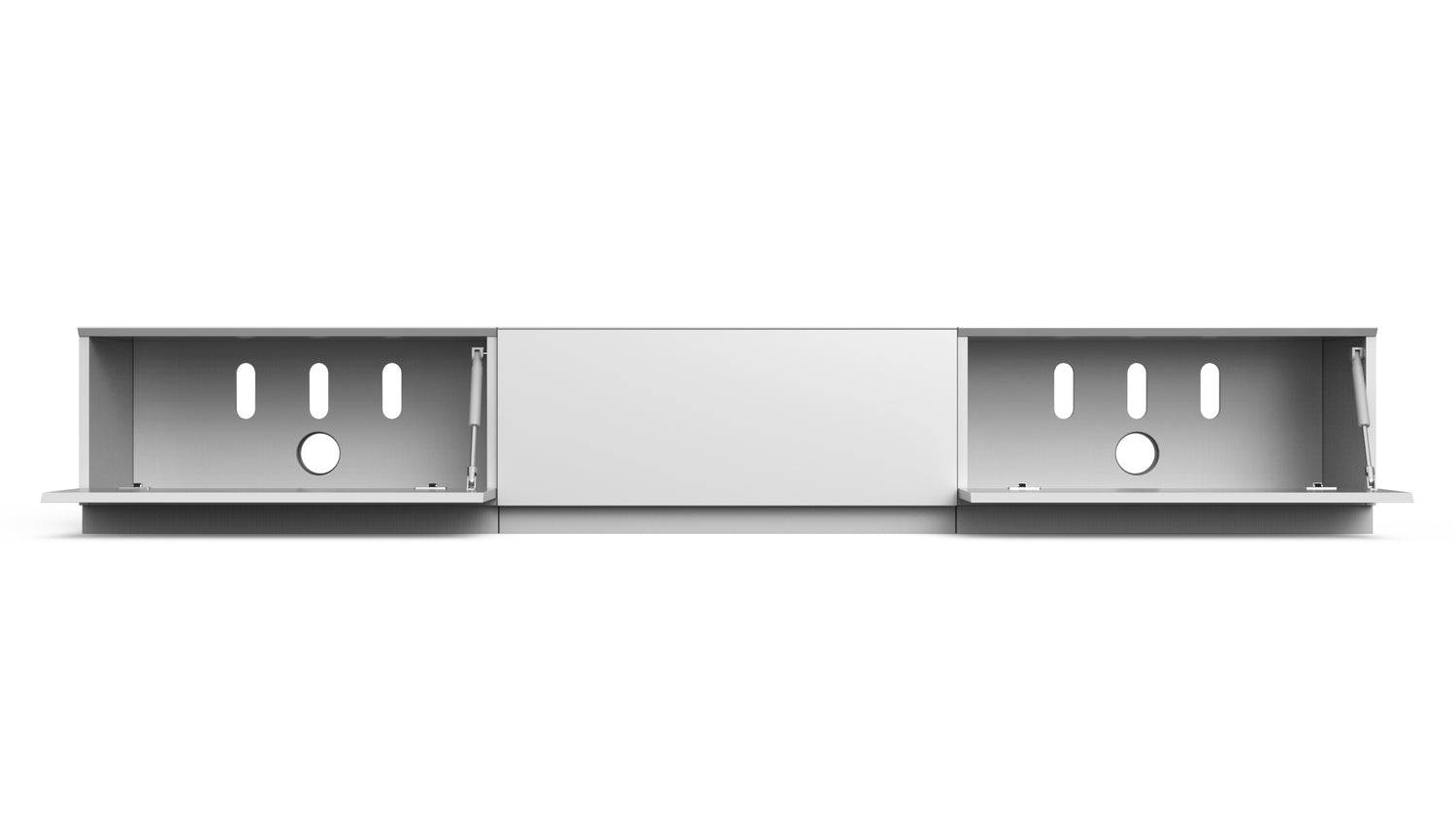

- Pinch-out cable management on rear and side panels, with stick-on cable clips supplied
- Works with fixed-frame screens too — the screen recess can house a soundbar instead, hidden under the flip cover
- Formaldehyde-free MDF with an aluminium drawer compartment

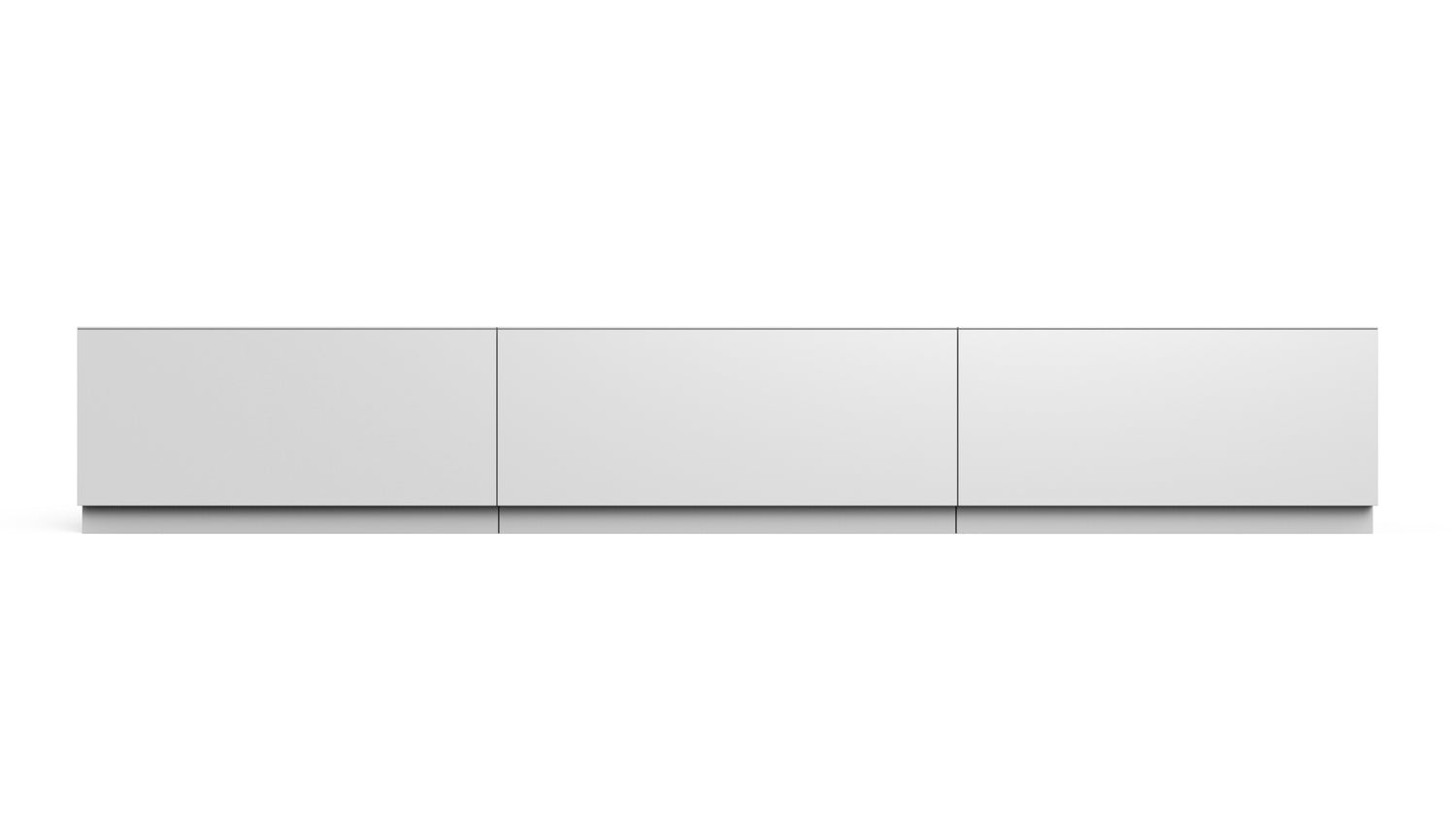

- Plinth skirting keeps dust from accumulating underneath
- Two finishes: Matt White or Matt Black
- Warranty: 5 years on motor-related parts, 2 years on wooden parts

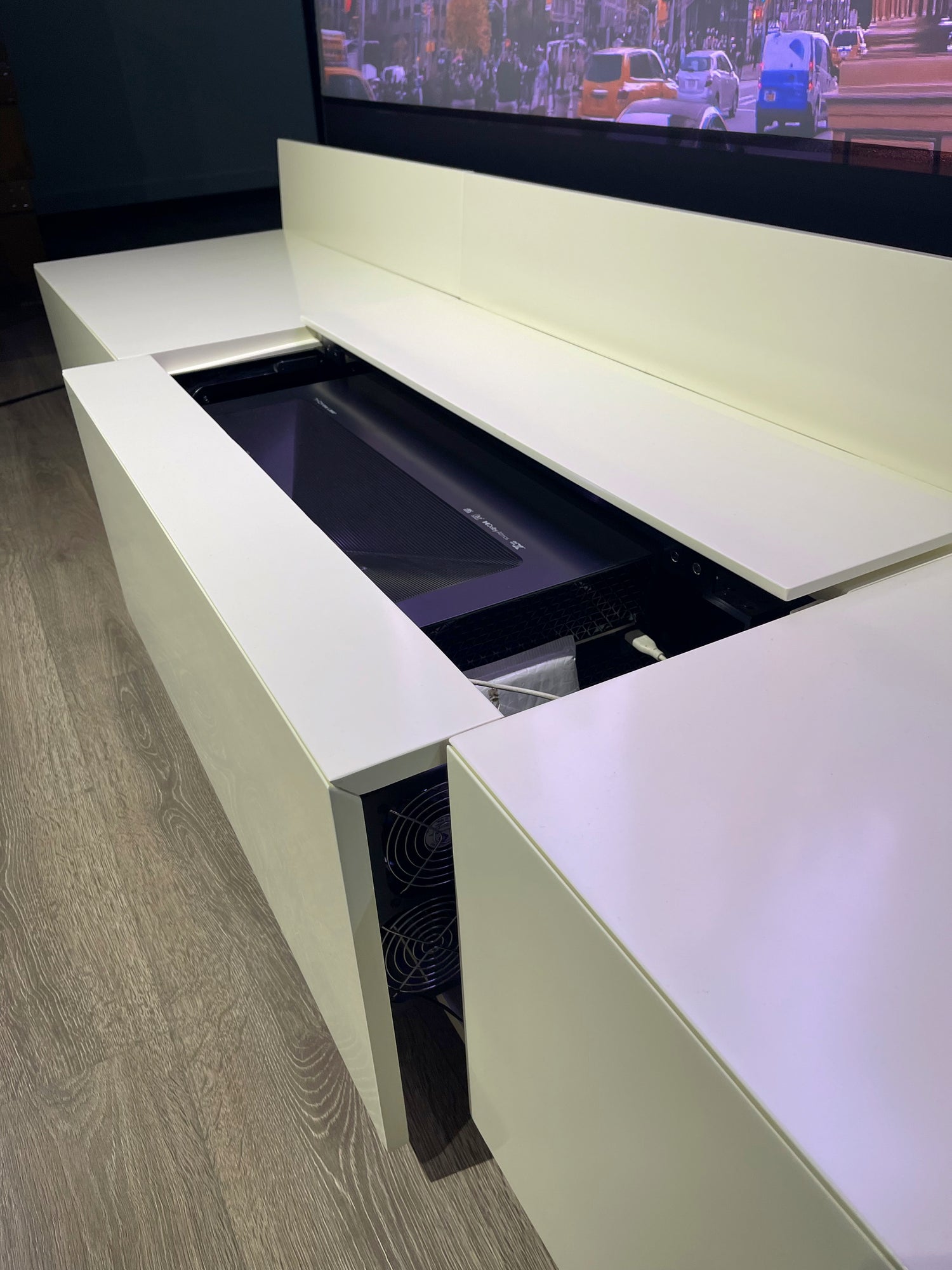

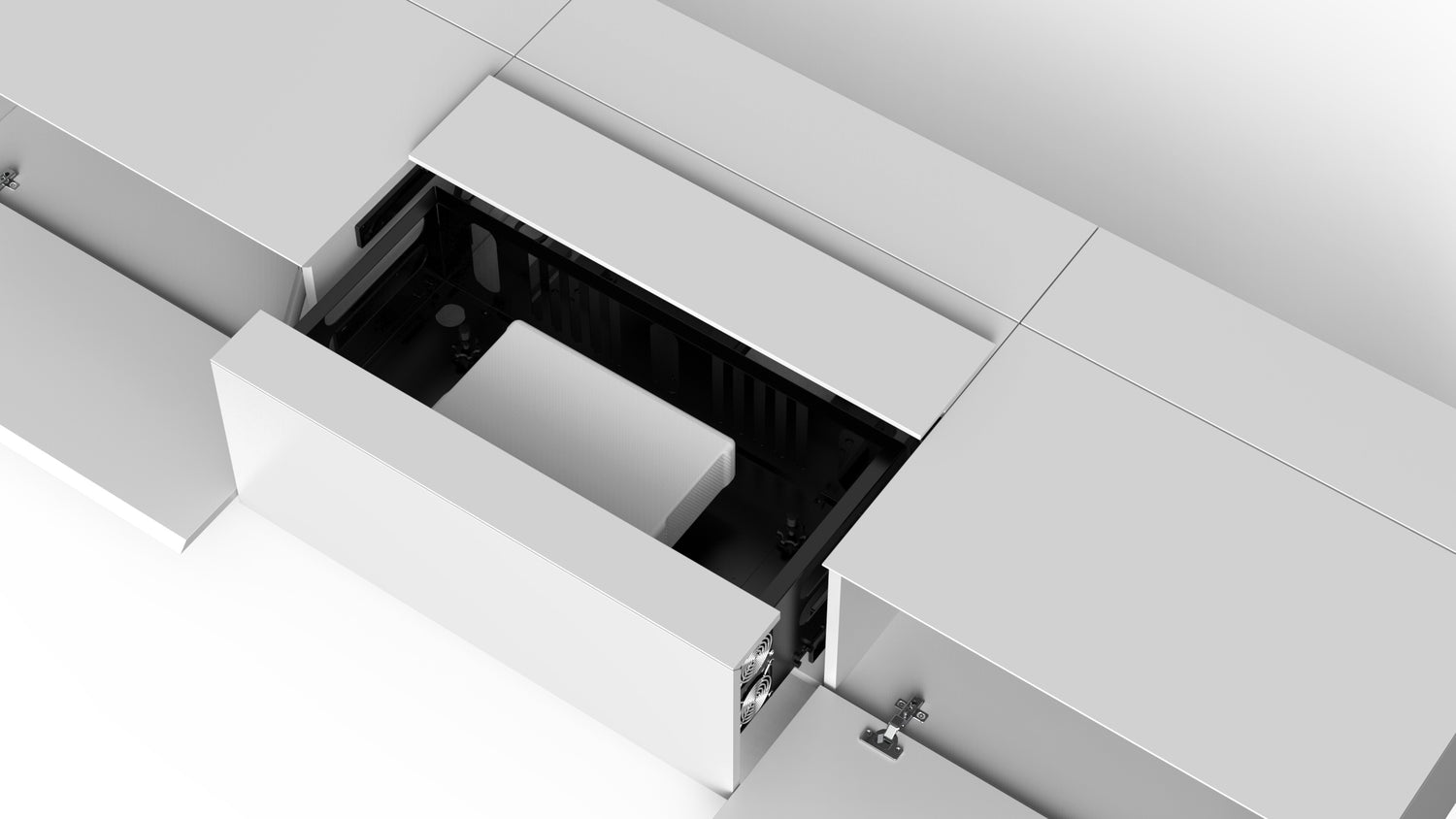

Adjustable Motorised Projector Platform

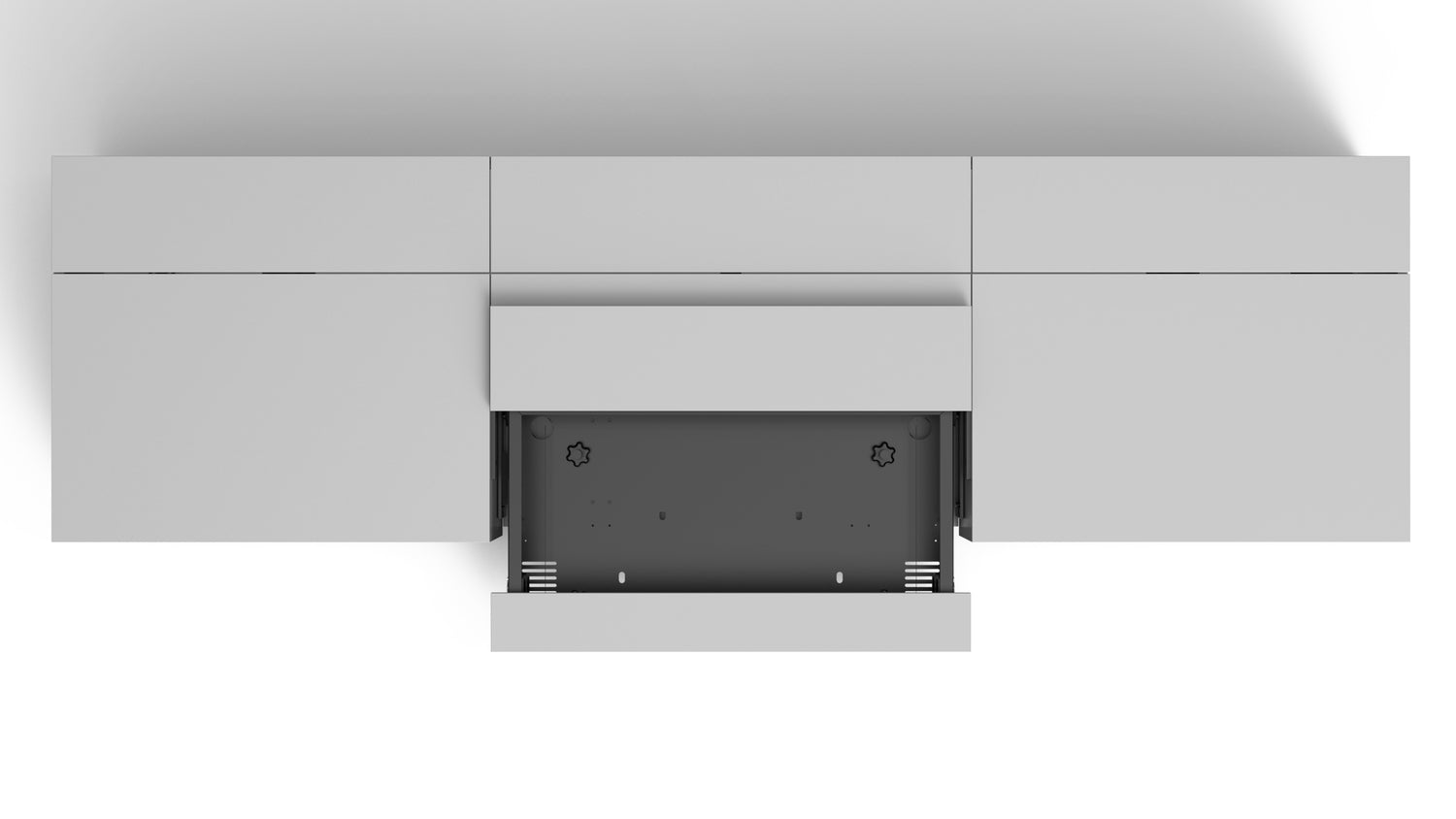

The travel distance of the central UST projector drawer can be set precisely between 95 mm and 230 mm. Once configured via the cabinet's remote or the smartphone app, the position is stored and applied automatically every time.
Hard-wired for Reliability

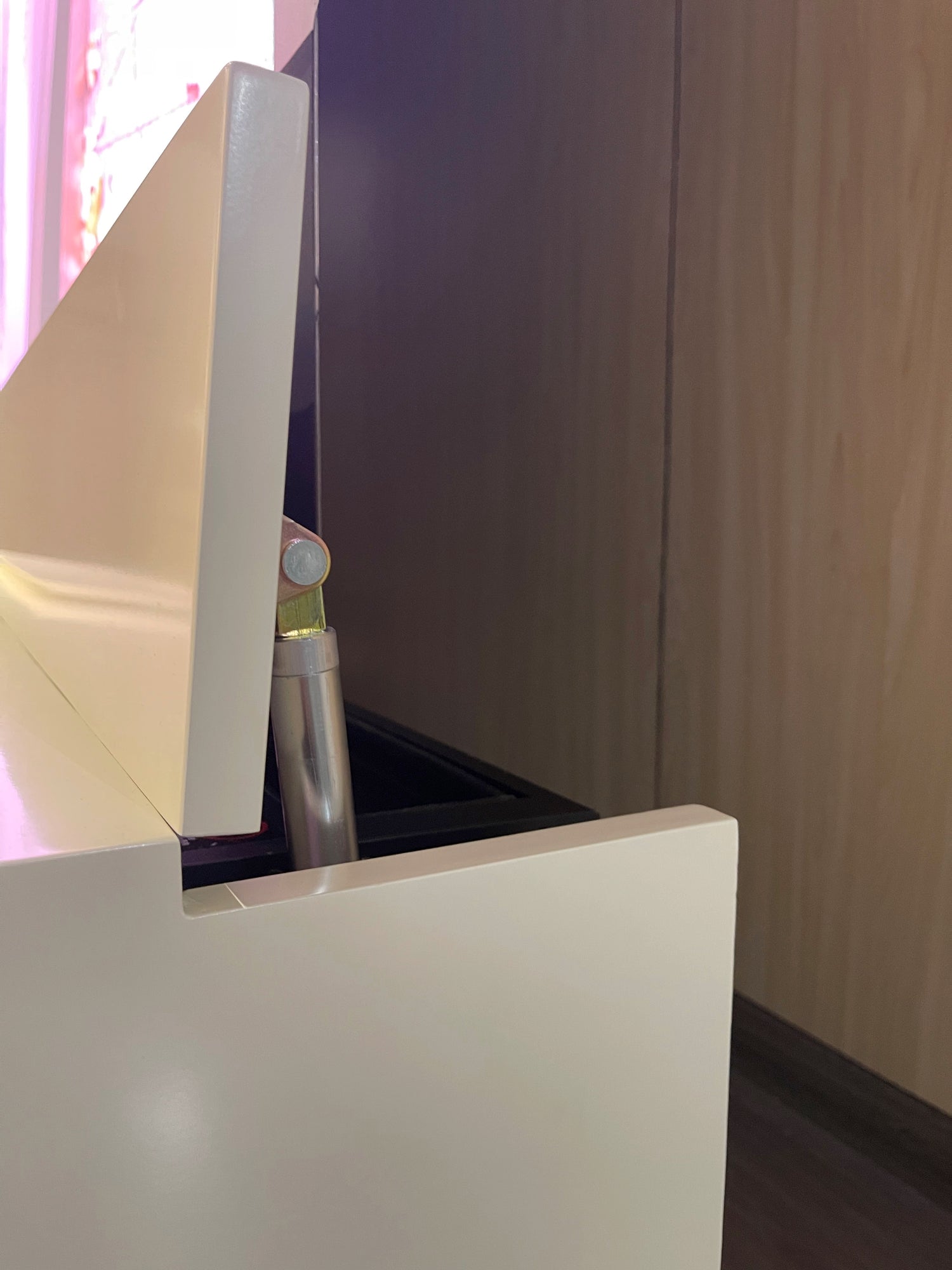

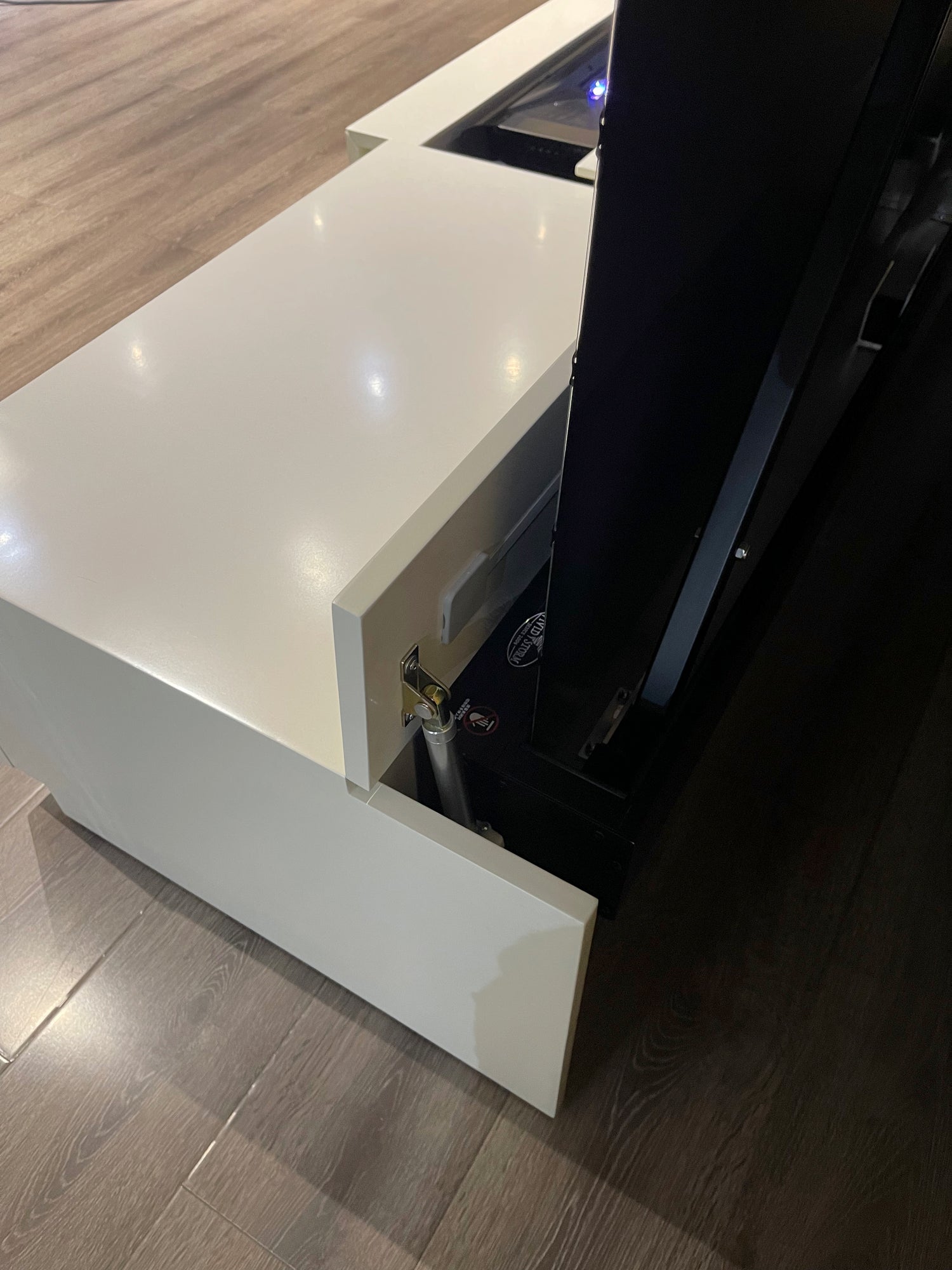

Unlike other UST cabinets that rely on a wireless USB trigger to sync the screen and cabinet, all key components in the SpaceMaster — screen, motorised drawer, flip cover, and cooling fans — are hard-wired together. If any mechanical component fails, the others stop too as a safety measure.
Smartphone Control
The Bluetooth-enabled control unit pairs with a free iOS / Android app, letting you set the drawer's precise travel distance and apply firmware updates from your phone.
Compatibility
UST Projectors: works with most ultra-short-throw projectors that meet the following limits:
- Throw ratio: 0.20–0.25 (100″ cabinet) / 0.17–0.25 (120″ cabinet)
- Max projector size (W × D × H): 700 × 380 × 200 mm
- Max projector weight: 30 kg
- Projector must have a keystone correction function
Floor-rising screens: the SpaceMaster is warranted to work with the Vividstorm S Pro only. The 100″ cabinet fits a 90″ or 100″ S Pro; the 120″ cabinet fits a 110″ or 120″ S Pro. The Vividstorm screen and projector are not included with the cabinet.
Confirmed Compatible Projectors
Read carefully — this cabinet is non-returnable.
| Brand | Model | 120″ Cabinet | 100″ Cabinet |
|---|---|---|---|
| Acer | L811 | Yes | Yes |
| AWOL | LTV-2500 / 3000 / 3500 | Yes | Yes |
| BenQ | V6000 / 6050 / 7000i / 7050i | Yes | Yes |
| CHiQ | V8S / B7U / B8U | Yes | Yes |
| Epson | EB-775F | Yes | Yes |
| Epson | EH-LS800 | Yes | No |
| Epson | EH-QS100 | Yes | Yes |
| Formovie | Theater | Yes | Yes |
| Hisense | PX1 / PX2 / PX3 / PL1 | Yes | Yes |
| LG | HU85LS | Yes | No |
| Nexigo | Aurora Pro | Yes | Yes |
| Optoma | L1 / CinemaX D2 | Yes | Yes |
| Philips | U5 | Yes | Yes |
| Samsung | LSP9T | Yes | No |
| Samsung | LSP7T | Yes | Yes |
| VAVA | LT002 / Chroma | Yes | Yes |
| Viewsonic | X2000L | Yes | Yes |
| Xgimi | Aura | Yes | Yes |
| Xgimi | Aura 2 | Yes | No |
Don't see your projector listed? Read our compatibility guide: Is my projector compatible with the Maxlight cabinet? — or call us on 01924 589 589 and we'll check for you.
Tip: before ordering, test how your image will look in the room by moving your projector back until the screen is 25 cm (10″) larger than normal, then use keystone to fit the original size. That's how the image will look once projected from inside the cabinet.

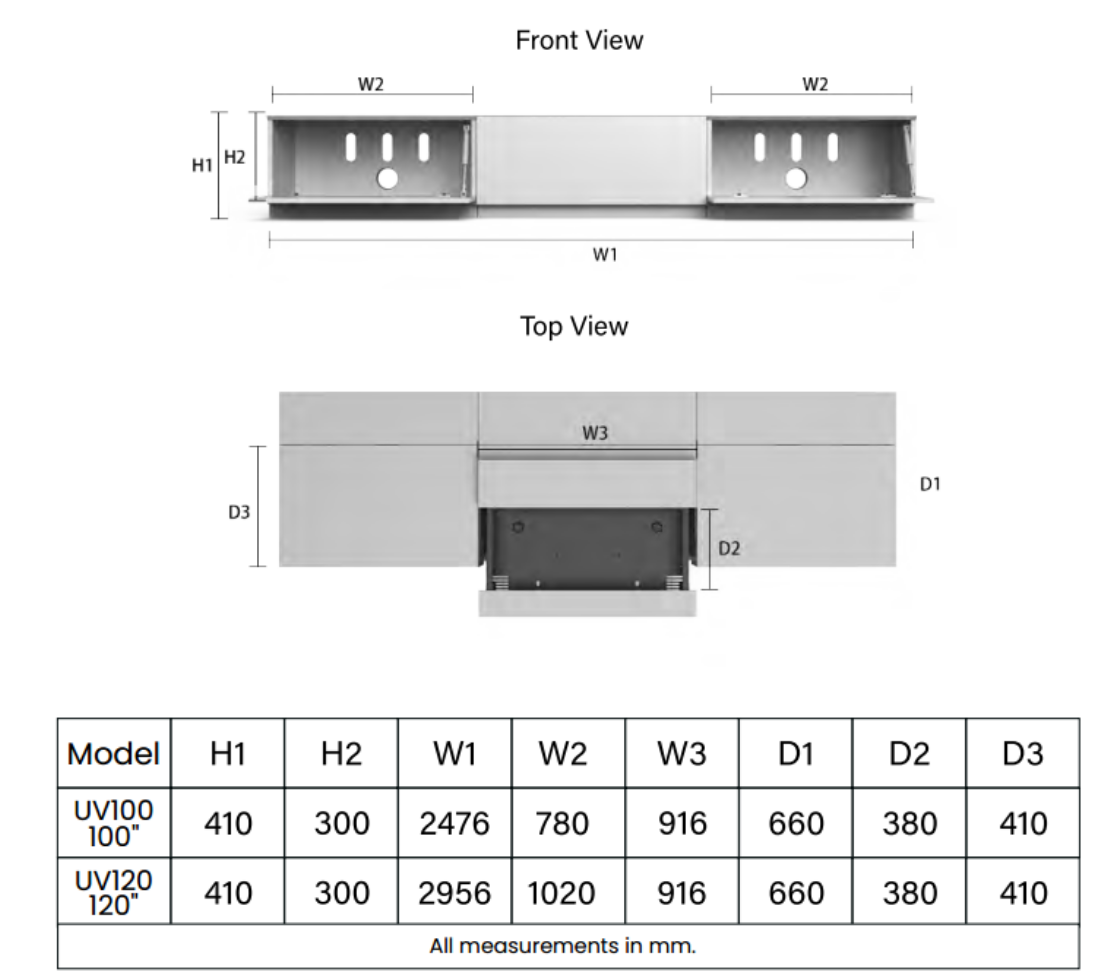

Specifications & Measurements
| Cabinet Size | H1 | H2 | W1 | W2 | W3 | D1 | D2 | D3 |
|---|---|---|---|---|---|---|---|---|
| 100″ | 410 | 300 | 2476 | 780 | 916 | 660 | 380 | 410 |
| 120″ | 410 | 300 | 2956 | 1020 | 916 | 660 | 380 | 410 |
All measurements in mm.
SKU & Variant Specifications
| SKU | MPC02 | MPC10 | MPC08 | MPC11 |
|---|---|---|---|---|
| Size | 100″ | 100″ | 120″ | 120″ |
| EAN | 5060885990082 | 5060885990143 | 5060885990099 | 5060885990150 |
| MPN | UV100-IW | UV100-BK | UV120-IW | UV120-BK |
| Compatibility | UST — see Compatibility section | |||
| Colour | White | Black | White | Black |
| Cabinet Overall (W × D × H) | 248 × 66 × 41 cm | 296 × 66 × 41 cm | ||
| Compatible Projector Size (max) | 70 × 38 × 20 cm | |||
| Compatible Projector Throw Ratio | 0.20–0.25 | 0.17–0.25 | ||
| Compatible Projector Weight | 30 kg | |||
| Compatible Vividstorm Screen | 90″ / 100″ S Pro | 110″ / 120″ S Pro | ||
| Packaging Size — 100″ | 125 × 115 × 120 cm, 190 kg | |||
| Packaging Size — 120″ | 125 × 115 × 120 cm, 200 kg | |||
* Only projectors with a keystone adjustment function are compatible.
How the SpaceMaster Compares to Other Maxlight Cabinets
The SpaceMaster is the largest Maxlight cabinet, with the deepest side units, hard-wired component sync, and Bluetooth smartphone control — but it's screen-locked to the Vividstorm S Pro. The MPC580 is more compact and works with more screen brands; the LK620 is Leica-Cine-1-specific.
| Feature | LK620 | MPC580 | SpaceMaster (this model) |
|---|---|---|---|
| Designed For | Leica Cine 1 only | Compatible UST projectors (most brands) | Compatible UST projectors (most brands) |
| Sizes Available | 100″ / 120″ | 100″ / 120″ | 100″ / 120″ |
| Finish Options | Black / Matt White / Light Oak / Walnut | IVY White (Matt) / Black (Matt) / Natural Oak / Walnut | Matt White / Matt Black |
| Cabinet Dimensions (W × D × H) — 100″ | 2600 × 330 × 620 mm | 2520 × 350 × 580 mm | 2476 × 660 × 410 mm |
| Cabinet Dimensions (W × D × H) — 120″ | 3060 × 330 × 620 mm | 3000 × 350 × 580 mm | 2956 × 660 × 410 mm |
| Compatible Projector Throw Ratio | Leica Cine 1 (factory matched) | 0.20–0.25 | 100″: 0.20–0.25 / 120″: 0.17–0.25 |
| Max Projector Size (W × D × H) | Leica Cine 1 (factory matched) | 750 × 390 × 205 mm | 700 × 380 × 200 mm |
| Max Projector Weight | — | 30 kg | 30 kg |
| Floor-Rising Screen Compatibility | Vividstorm, AWOL Vision, Grandview, Celexon, Screen Innovations | Vividstorm, AWOL Vision, Grandview, Celexon, Screen Innovations | Vividstorm S Pro only |
| Storage Capacity | Standard side cabinets | More compact — smaller side cabinets | Larger side cabinets — more storage space |
| Smartphone (Bluetooth) Control | — | — | Yes (iOS / Android app) |
| Hard-wired Component Sync | — | — | Yes (screen, drawer, lid, fans) |
| Packaging | Pre-assembled modular sections | Centre cabinet pre-assembled, 2 side cabinets flat-packed | Fully pre-assembled, ships in 2 wooden crates (180 kg total) |
| Warranty | 5 yrs motor parts / 2 yrs wooden parts | 5 yrs motor parts / 2 yrs wooden parts | 5 yrs motor parts / 2 yrs wooden parts |
Cabinet Assembly Instructions
Please view this prior to purchase.
Important Prior to Ordering
- This item ships from the UK in a crate weighing 180 kg. Inside the crate it splits into two pre-built side units (50 kg each) and a main unit (80 kg). Crate dimensions: 165 × 115 × 65 cm.
- Delivery is kerbside only — the driver will not enter your property. You will need 2–3 people to lift and move this product. Do not attempt to lift or move it on your own.
- The crate, pallet and packaging will not be retained by the driver — you will need to dispose of these.
- An all-day delivery slot is required.
- On arrival, inspect the crate and inform the driver of any damage. Once the crate is opened, notify us within 24 hours if any damage is found.
- The 90″–100″ cabinet is only warranted to work with the Vividstorm S Pro 92″ / 100″ screen.
- This is a custom-made item and is subject to our Trade Terms — non-returnable and non-refundable unless faulty, in which case it will be repaired or replaced.
If in any doubt, please call us on 01924 589 589 before ordering.
